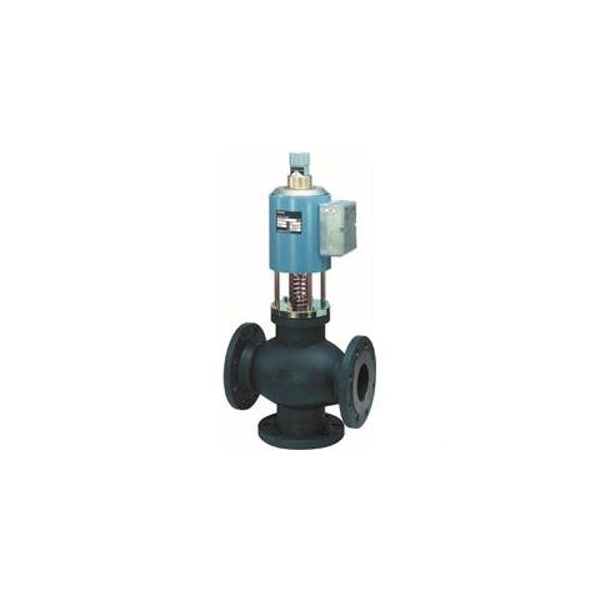

Hydronic Globe Valve, Three-Way, 4 in

  • Mfr # M3P100FY
  • Zoro # G610043395
product price:
$
5,330.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Configuration
Tee
Trim Material
Cast Iron
Gasket Material
EPDM
Close-Off Pressure
29 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M3P100FY
Zoro #
G610043395
UPC #
7612914010223
Country of Origin
Germany
Item
Hydronic Globe Valve
Body Material
Cast Iron
Configuration
Tee
Trim Material
Cast Iron
Gasket Material
EPDM
Close-Off Pressure
29 psi
Valve Style
Mixing
Cartridge Material
Steel
Includes Actuator
Actuator Included
Allowable Pressure - Maximum
29 psi
Actuator Input Voltage
24V AC
Actuator Type
Pneumatic
Manufacturer Series
M3P
Flow Characteristic
Linear
Port Connection Gender
Female
ANSI Rating
ANSI Class 125
Body Pattern
Three-Way
Rangeability
1:1000
Seat Material
Brass
Stem Material
EPDM
Valve Action
Normally Closed, Normally Open
Distance Between Inlet and Outlet Port
13 25/32 in
Application
Chilled/Hot Water Control
Coefficient of Volume (Cv)
152
Packing Material
EPDM
Installation Orientation
Horizontal
Leakage Rate
0.05%
Actuator Control Signal
Floating
Port Connection Type
Flanged
Operating Temperature - Maximum
248 Degrees F
For Media
Water
Operating Temperature - Minimum
35 Degrees F

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Floating, Actuator Input Voltage 24V AC, Actuator Return Action Not Applicable, Actuator Type Pneumatic, Allowable Pressure - Maximum 29 psi, ANSI Rating ANSI Class 125, Application Chilled/Hot Water Control, Body Material Cast Iron, Body Pattern Three-Way, Cartridge Material Steel, Close-Off Pressure 29 psi, Coefficient of Volume (Cv) 152
