Shop SIEMENS

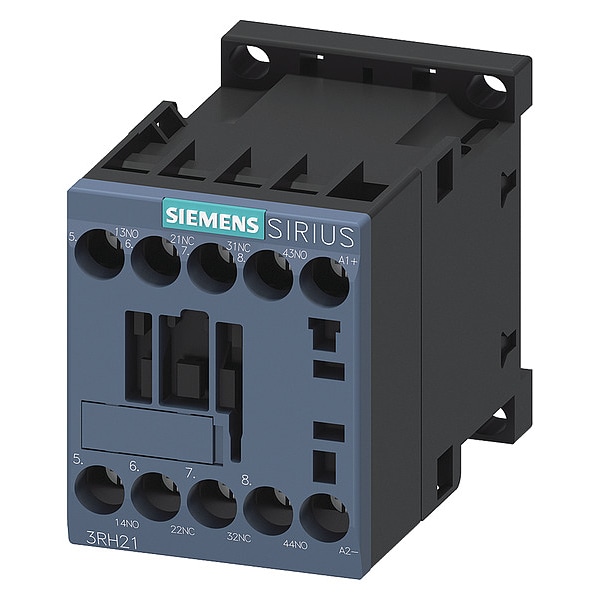

IEC Control Relay, 2NO/2NC, 24V DC, 10 A

  • Mfr # 3RH21221KB40

  • Zoro # G8361027

product price:  $133.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 240V, 1A @ 600V, 2A @ 500V, 3A @ 400V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
14
Mounting - Relay
Surface
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3RH21221KB40
Zoro #
G8361027
UPC #
662643903492
Country of Origin
Germany

Dimensions

Body Width - Relay
1.77 in
Body Height - Relay
2.26 in
Overall Height
2.26 in
Overall Height - Relay
2.26 in
Body Depth - Relay
2.87 in
Size
0.045 m / 0.0575 m / 0.073 m
Body Height
2.26 in
Body Depth
2.87 in
Body Width
1.77 in
Frame Size
S00

Details

Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 240V, 1A @ 600V, 2A @ 500V, 3A @ 400V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
14
Mounting - Relay
Surface
Contact Rating
A600 / Q600
Item
IEC Control Relay
Features
Surge Voltage Resistance Rated Value 6 kV
Power Consumption - Relay
2.8 W
Mounting
screw and snap-on mounting onto 35 mm standard mounting rail
Standards
RoHS Compliant, WEEE (2012/19/EU)
Response Time
10 to 15 msec (Arcing Time), 25 to 130 msec (Closing Delay), 7 to 20 msec (Opening Delay)
Input Voltage
24V DC
Electrical Connection
Screw Terminal
Contact Form
2NO/2NC
Connection
screw-type terminals
Operating Temperature
-25°C ... 60°C
Operating Cycles
30000000
Contact configuration
2
Type
Coupling relay for switching auxiliary circuits
Coil Power Rating
2.8 W / 2.8 W
Coil voltage
DC
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
Compatible with Series
3RH21 Control Relays
Number of Pins
14
IP Rating
IP20
Power Consumption
2.8 W
Contact Rating (AC)
1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V
Frequency
60 Hz
Contact Rating (DC)
0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V
Relay Style
IEC
Mounting Style
DIN Rail and Surface
Current Rating
10 A
Coil Voltage
24V DC

Description

IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 24V DC, Contact Rating (AC) 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail and Surface, Power Consumption 2.8 W, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH21 Control Relays, Maximum Operating Temperature 140 Degrees F
