  13. IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw

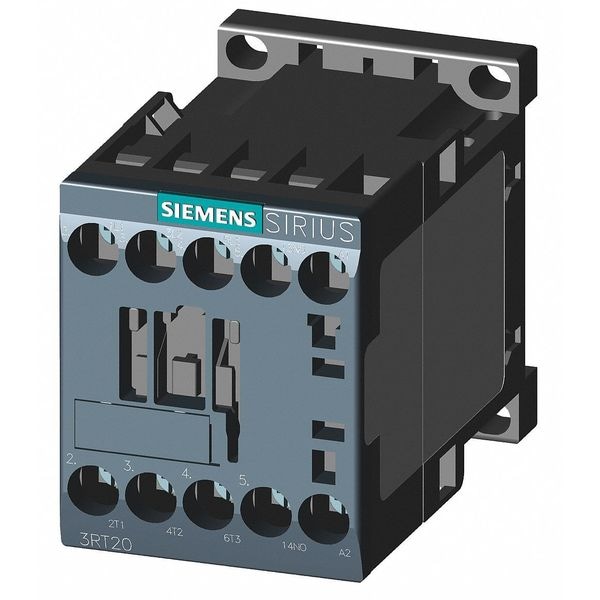

Siemens IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw 3RT20161AB01 - main

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw

  • Mfr # 3RT20161AB01

  • Zoro # G4322656

product price: $76.49
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20161AB01
Zoro #
G4322656
UPC #
662643907582
Country of Origin
Germany

Dimensions

Overall Width
2.4 in
Mounting Hole Distance - Width
1.38 in
Overall Depth
3.25 in
Overall Height
1.95 in
Mounting Hole Diameter
0.2 in
Mounting Hole Distance - Height
1.97 in
Frame Size
S00

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
1
Standards
REACH Art 33, WEEE (2012/19/EU)
Reversing
No
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 1 Phase - 230V
1
Frame / Series / Class / Code
S00
Enclosure NEMA Rating
No Enclosure
Series
SIRIUS 3RT20
Watts Loss
0.3W (Current Dependent); 4.2W (Current Independent)
Max. Operating Watts
4 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
IP Rating
IP20
Mounting Style
DIN Rail, Surface
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Response Time
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)
Full Load Current - Inductive
9:00 AM
Mounting Postion
Vertical
Horsepower @ Three Phase - 208V AC
2 hp
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
5 hp
Minimum Operating Temperature
-13 Degrees F
Number of Normally Open Main Contacts
3
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
1/3 hp
Phase
Three
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
30,000,000
Full Load Current - Resistive
22 A
Contactor Style
IEC

Description

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device with a 24 V AC coil. It belongs to the SIRIUS 3RT20 series (frame S00) and is intended for use in IEC control applications within specified parameters. It includes 1 normally open auxiliary contact and has screw terminals. The unit is compatible with DIN Rail or surface mounting in a vertical orientation and is rated for operation within the specified voltage and frequency ranges, with an IP20 enclosure rating. It does not include an enclosure; suitable enclosures must be selected separately.

Key features

  • Action: Non-Reversing; Reversing: No; Poles: 3
  • Coil: 24 V AC
  • Auxiliary contacts: Includes 1 auxiliary contact (1NO)
  • Main contacts: 3 normally open
  • Contact configuration and frame: Frame S00; Frame Size S00; Series SIRIUS 3RT20
  • Electrical connections: Screws
  • Mounting: DIN Rail, Surface; Mounting Position: Vertical
  • Enclosure: Does not include an enclosure; suitable enclosures must be selected separately; IP Rating: IP20
  • Voltage and power: Maximum 690V AC; Max. Operating Watts: 4 kW (AC-3) / 13 kW (AC-1)
  • Currents and HP: Full Load Amps Inductive 9 A; Resistive 22 A; HP @ various voltages (120V: 1/3 hp; 230V: 1 hp; 240V: 1 hp; 208V 2 hp; 240V 3 hp; 480V 5 hp; 600V 7 1/2 hp)
  • Mechanical durability: tested to withstand up to 30 million operational cycles under specified conditions
  • Temperature range: rated for operation within the specified temperature range (-25°C to +60°C)
  • Dimensions: Height 1.95 in; Width 2.40 in; Depth 3.25 in
  • Mounting hole diameter and spacing: Hole Ø 0.2 in; Height spacing 1.97 in; Width spacing 1.38 in
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Additional: Embedded Surge Suppressor: No
