Shop DAYTON

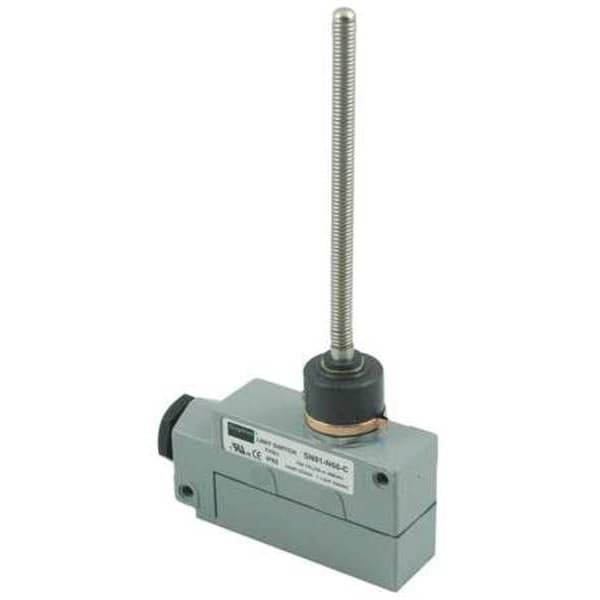

Limit Switch, Wobble Stick, SPDT, 15A at 480V AC, Actuator Location: Top

  • Mfr # 12T924

  • Zoro # G4170695

product price:  $55.55
/ea

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T924
Zoro #
G4170695
UPC #
190735116579
Country of Origin
China

Dimensions

Width
3.39"
Actuator Length - Limit Switch
5.12 in
Depth
1.01"
Body Height - Limit Switch
1.76 in
Actuator Length
5.12"
Height
6.88"
Body Width - Limit Switch
3.39 in
Body Depth - Limit Switch
1.01 in
Mounting Hole Diameter
0.21 in
Body Height
1.76 in
Body Depth
1.01 in
Body Width
3.39 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
DC Contact Rating - Limit Switch
15A at 480V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Location
Top
Standards
CE, CSA, UL Listed
Operating Force
5 oz
Basic Actuator Style (Limit Switch)
Wobble Stick
Travel
Maximum Pre-Travel 15 Degrees , Over Travel N/A
Limit Switch Style
General Purpose Limit Switch
Contact Form
SPDT
Boot Sealed Actuator (Limit Switch)
Yes
Mounting Hole Spacing - Limit Switch
2.95 in x 1.22 in
Mounting Hole - Limit Switch
(2) 0.21 in dia
Voltage Rating
480VAC/DC
Actuator Style (Limit Switch)
Wobble Stick
Operating Temp. Range
-14 Degrees to 176 Degrees F
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Series
Dayton
Actuator Location (Limit Switch)
Top
Electrical Connection
Screw Terminals
Wiring Entry
1/2 in NPT
Actuator Style
Wobble Stick
Contact Form - Limit Switch
SPDT
DC Contact Rating
15 A @ 480 V
Number of Poles
1
IP Rating
IP65
Movement
Omnidirectional
Amps
15
Stem Thread - Limit Switch
No Stem
NEMA Rating
13, 3, 4
Boot Sealed Actuator - Limit Switch
Yes
Body Style (Limit Switch)
Miniature
AC Contact Rating
15 A @ 480 V
Operating Force - Maximum
5 ozf
NEMA Enclosure Rating
13, 3, 4
Number of Mounting Holes
2
Action
A
Mounting Style
Surface
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-14 Degrees F
Pretravel
15 Degrees
Mounting Hole Vertical Center to Center Distance
75 mm
Boot Sealed Actuator
Boot Included
Directional Movement
Omnidirectional
Mounting Hole Horizontal Center to Center Distance
31 mm

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 480V, DC Contact Rating - Limit Switch 15A @ 480V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 5.12 in, Body Height - Limit Switch 1.76 in, Body Width - Limit Switch 3.39 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface
