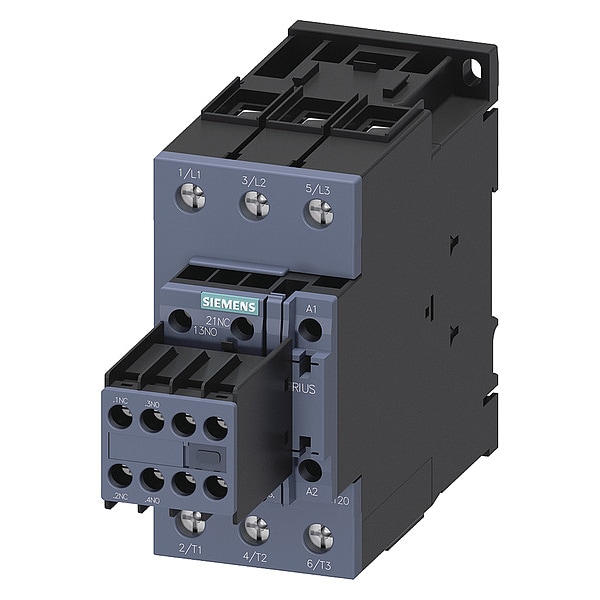

Siemens IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20351AK64 - main

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw

  • Mfr # 3RT20351AK64

  • Zoro # G1893354

product price:  $332.84
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3RT20351AK64
Zoro #
G1893354
UPC #
887621915537
Country of Origin
Germany

Dimensions

Overall Height
7.32 in
Mounting Hole Distance - Width
1.77 in
Mounting Hole Diameter
0.2 in
Overall Width
3.03 in
Mounting Hole Distance - Height
3.84 in
Overall Depth
5.18 in
Frame Size
S2

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S2
HP @ 3 Phase - 575V
40 hp
Watts Loss
2.2W (Current Dependent); 18.5W (Current Independent)
Series
SIRIUS 3RT20
IP Rating
IP20
Max. Operating Watts
19 kW (at 400V, AC-3), 39 kW (at 400V, AC-1)
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
10,000,000
Horsepower @ Three Phase - 208V AC
10 hp
Mounting Style
DIN Rail, Surface
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Frequency
50/60 Hz
Horsepower @ Single Phase - 120V AC
3 hp
Full Load Current - Inductive
41 A
Mounting Postion
Vertical
Embedded Surge Suppressor
No
Response Time
10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1)
Horsepower @ Three Phase - 240V AC
15 hp
Horsepower @ Three Phase - 480V AC
30 hp
Phase
Three
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
690V AC
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 600V AC
40 hp
Full Load Current - Resistive
60 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Single Phase - 240V AC
7 1/2 hp

Description

Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device with a 110–120 V AC coil. It contains auxiliary contacts (2 NO/2 NC) and main contacts (normally open) as specified. The unit uses screw terminals and belongs to the SIRIUS 3RT20 series with an S2 frame size. It is rated for operation within the specified voltage and frequency ranges and has an IP20 enclosure rating. Mounting options include DIN Rail or Surface with a vertical mounting orientation.

Coil Voltage: 110–120 V AC

  • Poles/Contacts: 3-pole; main contacts (normally open); auxiliary contacts: 2 NO/2 NC
  • Frame/Series: S2 frame; SIRIUS 3RT20
  • Terminals: Screw
  • Max Voltage/Frequency: 690 V AC; 50/60 Hz
  • IP Rating: IP20
  • Mounting: DIN Rail or Surface; Vertical orientation
  • Mechanical Durability: approximately 10 million cycles under standard testing conditions
  • Full Load Amps: Inductive 41 A; Resistive 60 A
  • Reversing Capability: Non-Reversing
  • HP Ratings: 3 hp @ 120 V; 7.5 hp @ 240 V; 10 hp @ 208 V; 15 hp @ 240 V; 30 hp @ 480 V; 40 hp @ 575 V
  • Response Time: Typical opening and closing times based on standard testing procedures
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Enclosure: No Enclosure
