  13. IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw

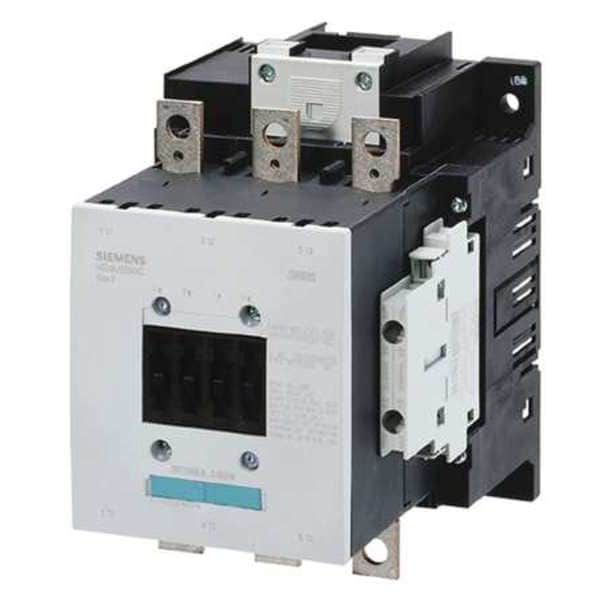

Siemens IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw 3RT10566AB36 - main

IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw

  • Mfr # 3RT10566AB36

  • Zoro # G4319551

product price: $1,245.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
23V-26V AC/DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3RT10566AB36
Zoro #
G4319551
UPC #
754554771731
Country of Origin
Germany

Dimensions

Overall Width
0.47 in
Frame Size
S6
Overall Height
6.77 in
Mounting Hole Diameter
0.36 in
Mounting Hole Distance - Width
3.94 in
Mounting Hole Distance - Height
5.12 in
Overall Depth
6.69 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
23V-26V AC/DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
4
Standards
REACH Art 33, WEEE (2012/19/EU)
Reversing
No
HP @ 3 Phase - 575V
200 hp
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
30
Frame / Series / Class / Code
S6
Series
SIRIUS 3RT10
Watts Loss
13W (Current Dependent); 5.2W (Current Independent)
Max. Operating Watts
90 kW (at 400V, AC-4), 90 kW (at 400V, AC-3), 121 kW (at 400V, AC-1)
Horsepower @ Single Phase - 240V AC
30 hp
Horsepower @ Three Phase - 600V AC
200 hp
Horsepower @ Three Phase - 208V AC
60 hp
Horsepower @ Three Phase - 240V AC
75 hp
Mechanical Operating Durability
10,000,000
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
No
Maximum Voltage Rating
1000V AC
Horsepower @ Three Phase - 480V AC
150 hp
Number of Normally Open Main Contacts
3
Full Load Current - Resistive
215 A
Phase
Three
Full Load Current - Inductive
185 A
Contactor Style
IEC
Mounting Style
Surface
Mounting Postion
Vertical
Response Time
35 to 75 msec (Closing Time - at 0.8 × Us min ... 1.1 × Us Max), 40 to 60 msec (Closing Time - at Us min ... Us Max), 80 to 90 msec (Opening Time - at 0.8 × Us min ... 1.1 × Us Max), 80 to 90 msec (Opening Time - at Us min ... Us Max)
Minimum Operating Temperature
-13 Degrees F
Includes Auxiliary Contacts
Yes
Frequency
50/60 Hz

Description

The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switching device used to control power circuits. This 3-pole, non-reversing unit operates with a coil voltage of 23–26 V (AC/DC) and includes four auxiliary contacts configured as 2NO/2NC. It is part of the SIRIUS 3RT10 series (Frame S6) and uses screw terminals. Rated for operation up to 1000V AC within specified conditions, designed for surface mounting in a vertical orientation; intended for use within specified frequency ranges. It has an expected mechanical lifespan based on standard testing procedures.

Action: Non-Reversing

  • Poles: 3
  • Coil Voltage: 23–26 V AC/DC
  • Auxiliary Contacts: 4 total (2NO/2NC)
  • Reversing: No
  • Series/Frame: SIRIUS 3RT10, Frame S6
  • Maximum Voltage Rating: 1000V AC within specified conditions
  • Termination: Screw
  • Mounting Style/Position: Surface, Vertical
  • Enclosure: No Enclosure
  • Frequency: 50/60 Hz
  • Mechanical Durability: It has an expected mechanical lifespan based on standard testing procedures
  • Full Load Amps: Capable of handling full load currents as specified under standard test conditions
  • HP Ratings (example voltages/phases): 30 hp @ 1P 230V; 30 hp @ 1P 240V; 60 hp @ 3P 208V; 75 hp @ 3P 240V; 150 hp @ 3P 480V; 200 hp @ 3P 575V; 200 hp @ 3P 600V
  • Standards: REACH Art 33, WEEE (2012/19/EU)
