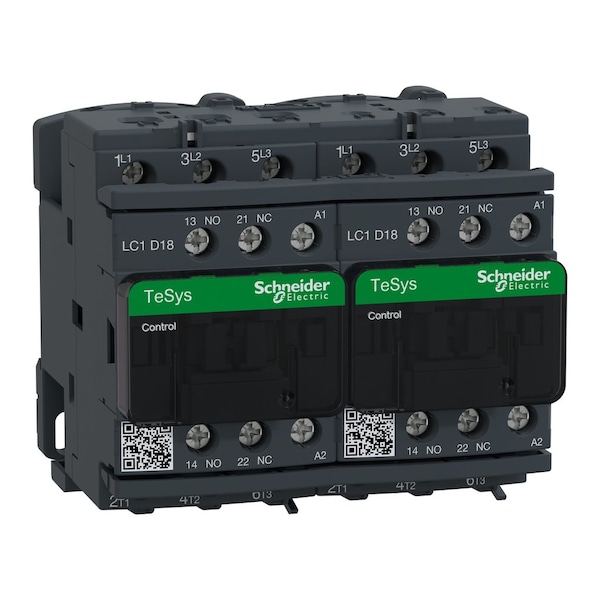

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Reversing, Screw Clamp LC2D18E7 - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D18E7

  • Zoro # G310070592

product price:  $404.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D18E7
Zoro #
G310070592
UPC #
3389110386356
Country of Origin
France

Dimensions

Overall Depth
3.39 in
Overall Width
3.54 in
Overall Height
3.03 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Single Phase - 240V AC
3 hp
Electrical Operating Durability
1,000,000 (AC-1), 1,650,000 (AC-3)
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
15,000,000
Horsepower @ Single Phase - 120V AC
1 hp
Contactor Style
IEC
Horsepower @ Three Phase - 208V AC
5 hp
Embedded Surge Suppressor
No
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 600V AC
15 hp
Phase
Three
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
18 A
Full Load Current - Resistive
32 A

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing contactor rated for switching power circuits within the specified IEC standards. It uses an electromagnetic coil to operate the main contacts and includes auxiliary contacts (1NC/1NO) as specified by manufacturer documentation. It features screw clamp terminals and mounting options for DIN rail or plate installation. Its coil is rated at 48V AC. It is compatible with standard IEC control panel configurations within its rated voltage and phase specifications.

Coil Voltage: 48V AC

  • Auxiliary Contacts: 1NC/1NO (2 total)
  • Number of Poles: 3
  • Reversing Capability: Capable of reversing operation as per manufacturer specifications
  • Contactor Style: IEC
  • Terminal Connection Type: Screw Clamp
  • Maximum Voltage Rating: 690V AC
  • Frequency: 50/60 Hz
  • IP Rating: IP20
  • Full Load Amps: Inductive 18 A; Resistive 32 A
  • Electrical Operating Durability: 1,000,000 (AC-1), 1,650,000 (AC-3)
  • Mechanical Operating Durability: 15,000,000
  • Temperature Range: -40°F to 140°F
  • Mounting Style: DIN Rail, Plate
  • Phase: Three
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Includes Auxiliary Contacts: Yes
  • Horsepower (various voltages): 120V AC 1 hp; 240V AC 3 hp; 208V AC 5 hp; 240V AC 5 hp; 480V AC 10 hp; 600V AC 15 hp
