  13. IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Spring Type

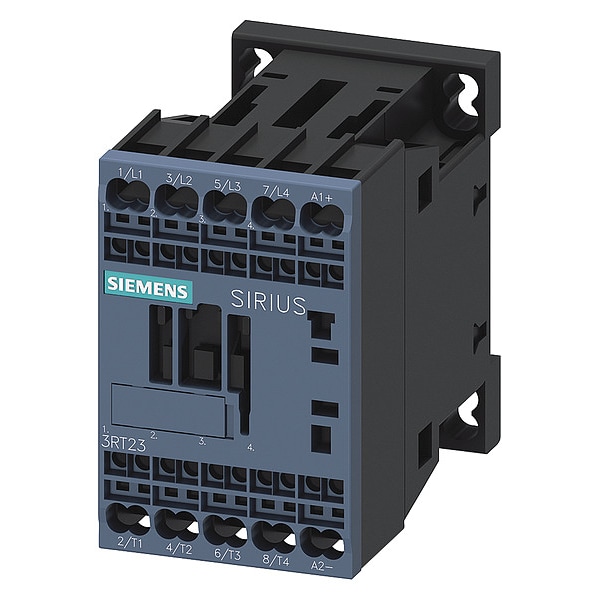

Siemens IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Spring Type 3RT23162BB40 - main

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Spring Type

  • Mfr # 3RT23162BB40

  • Zoro # G1892828

product price: $95.29
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Spring Type
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT23162BB40
Zoro #
G1892828
UPC #
662643917338
Country of Origin
Germany

Dimensions

Overall Width
3.15 in
Overall Depth
1.7 in
Frame Size
S00
Overall Height
2.85 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Spring Type
Number of Auxillary Contacts
4
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S00
Series
SIRIUS 3RT23
Watts Loss
1.1W (Current Dependent); 4W (Current Independent)
Max. Operating Watts
4 kW (at 400V, AC-4), 4 kW (at 400V, AC-3)
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
Mounting Style
DIN Rail, Surface
Contactor Style
IEC
Mounting Postion
Vertical
Mechanical Operating Durability
30,000,000
Full Load Current - Resistive
18 A
NEMA Enclosure Rating
No Enclosure
Number of Normally Open Main Contacts
4
Number of Normally Closed Main Contacts
0
Full Load Current - Inductive
18 A
Embedded Surge Suppressor
No
Includes Auxiliary Contacts
Yes

Description

The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It features 4 poles, is rated for non-reversing applications, and uses a 24 V DC coil with a spring-type terminal connection. The unit includes auxiliary contacts configured as 2NC/2NO (4 total). It belongs to the SIRIUS 3RT23 family with frame size S00 and is compatible with standard control panel configurations.

Coil Voltage: 24 V DC

  • Poles / Main contacts: 4 poles; 4 normally open main contacts; 0 normally closed main contacts
  • Auxiliary contacts: 4 total (2NC/2NO)
  • Reversing capability: rated for non-reversing applications
  • Frame / Series / Code: S00; SIRIUS 3RT23
  • Mounting: Vertical; DIN Rail, Surface
  • Terminal connection: Spring Type
  • IP Rating: IP20
  • Embedded Surge Suppressor: does not include an integrated surge suppressor
  • Dimensions (approx.): Depth 73 mm (1.7 in); Height 70 mm (2.85 in); Width 45 mm (1.77 in); Overall: Depth 1.7 in; Height 2.85 in; Width 3.15 in
  • NEMA Enclosure Rating: No Enclosure
  • Max Operating Watts: rated for operation up to 4 kW at specified voltages and load types
  • Full Load Amps: Inductive 18 A; Resistive 18 A
  • Mechanical Operating Durability: specified mechanical durability under test conditions
  • Operating Temperature: Min -13 °F; Max 140 °F
  • Includes Auxiliary Contacts: Yes
  • Number of Auxiliary Contacts: 4
