  13. IEC PowerContactor, Non-Reversing, 24VDC

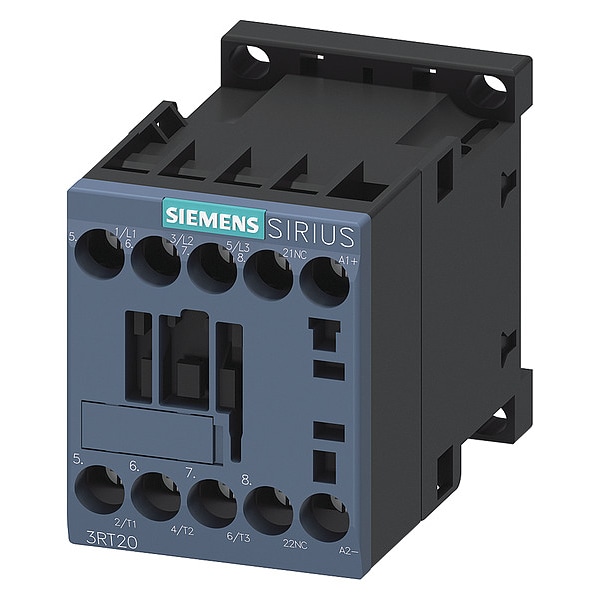

Siemens IEC PowerContactor, Non-Reversing, 24VDC 3RT20161HB42 - main

IEC PowerContactor, Non-Reversing, 24VDC

  • Mfr # 3RT20161HB42

  • Zoro # G8359444

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
1/3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20161HB42
Zoro #
G8359444
UPC #
662643907957
Country of Origin
Germany

Dimensions

Height
58 mm
Width
45 mm
Depth
73 mm
Overall Width
1.97 in
Mounting Hole Diameter
0.2 in
Frame Size
S00
Mounting Hole Distance - Width
1.38 in
Overall Height
3.08 in
Overall Depth
2.45 in
Mounting Hole Distance - Height
1.97 in

Details

Item
IEC Power Contactor
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
1/3 hp
HP @ 1 Phase - 240V
1 hp
HP @ 3 Phase - 208V
2 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 3 Phase - 480V
5 hp
Aux. Contact Configuration
1NC
Frame / Series / Class / Code
S00
Standards
REACH Art 33, WEEE (2012/19/EU)
Series
SIRIUS 3RT20
Auxiliary Contact Form
1NC
Power loss per pole, current-dependent [PlIp]
0.3 watt
suitable for series installation
Yes
Rated operating power with AC-3, 400 V
4 kilowatt
Connection type
Screw connection
Rated operating current Ie with AC-3, 400 V
9 ampere
Number of making contacts and main contacts
3
Rated current [In] for the power loss specification
9 ampere
Power loss, static, current-independent [Pls]
2.8 watt
min. rated control voltage Us with DC
24 volt
rated operational power AC-1 at 400 V
13 kilowatt
Horsepower @ Three Phase - 480V AC
5 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 240V AC
3 hp
Maximum Operating Temperature
140 Degrees F
Phase
Three
Mounting Postion
Vertical
IP Rating
IP20
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Single Phase - 240V AC
1 hp
Minimum Operating Temperature
-13 Degrees F
Full Load Current - Inductive
9 A
Maximum Voltage Rating
690V AC
Full Load Current - Resistive
22 A
Response Time
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)
Number of Normally Open Main Contacts
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Terminals
Horsepower @ Single Phase - 120V AC
1/3 hp
Embedded Surge Suppressor
No
Mounting Style
DIN Rail, Surface
NEMA Enclosure Rating
No Enclosure
Coil Voltage
24V DC
Mechanical Operating Durability
30,000,000
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Number of Auxillary Contacts
1
Contactor Style
IEC

Description

IEC Power Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
