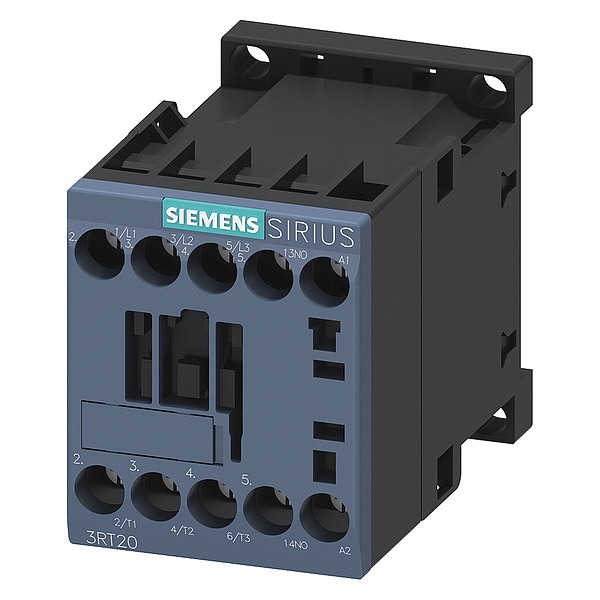

Siemens IECPowerContactor, Non-Reversing, 480VAC 3RT20171AV61 - main

IECPowerContactor, Non-Reversing, 480VAC

  • Mfr # 3RT20171AV61

  • Zoro # G8363093

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
480 V AC
HP @ 1 Phase - 120V
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20171AV61
Zoro #
G8363093
UPC #
887621712778
Country of Origin
Germany

Dimensions

Height
58 mm
Width
45 mm
Depth
73 mm
Mounting Hole Distance - Height
1.97 in
Overall Depth
2.45 in
Overall Width
1.97 in
Mounting Hole Diameter
0.2 in
Mounting Hole Distance - Width
1.38 in
Overall Height
3.08 in
Frame Size
S00

Details

Item
IEC Power Contactor
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
480 V AC
HP @ 1 Phase - 120V
1/2 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 480V
7 1/2 hp
Auxiliary Contact Form
1NO
Frame / Series / Class / Code
S00
Standards
REACH Art 33, WEEE (2012/19/EU)
Hz
60
Series
SIRIUS 3RT20
Aux. Contact Configuration
1NO
Rated operating current Ie with AC-3, 400 V
12 ampere
max. rated AC voltage for controls (60 Hz)
480 volt
Power loss, static, current-independent [Pls]
6.5 watt
Rated operating power with AC-3, 400 V
6 kilowatt
Power loss per pole, current-dependent [PlIp]
0.5 watt
suitable for series installation
Yes
Rated current [In] for the power loss specification
12 ampere
Connection type
Screw connection
rated operational power AC-1 at 400 V
13 kilowatt
Number of making contacts and main contacts
3
Coil Voltage
480V AC
Horsepower @ Single Phase - 120V AC
1/2 hp
Horsepower @ Three Phase - 600V AC
10 hp
Mounting Style
DIN Rail, Surface
Number of Auxillary Contacts
1
Full Load Current - Resistive
22 A
Minimum Operating Temperature
-13 Degrees F
Embedded Surge Suppressor
No
IP Rating
IP20
Horsepower @ Single Phase - 240V AC
2 hp
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
690V AC
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Inductive
12 A
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
3 hp
Phase
Three
Response Time
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)
Mounting Postion
Vertical
Number of Normally Open Main Contacts
3
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Mechanical Operating Durability
30,000,000
Frequency
60 Hz
Terminal Connection Type
Screw Terminals

Description

IEC Power Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 480V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
