Shop DAYTON

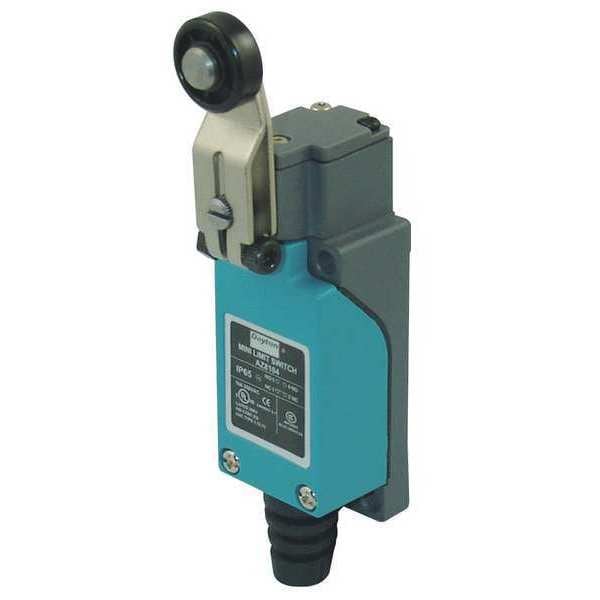

Limit Switch, Roller Lever, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side

  • Mfr # 12T959

  • Zoro # G4211155

product price:
$
22.19
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12T959
Zoro #
G4211155
UPC #
190735116920
Country of Origin
China
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
300VAC/DC
Basic Actuator Style (Limit Switch)
Rotary
IP Rating
IP65
Mounting Hole - Limit Switch
(4) 0.20 in dia
Actuator Style
Rotary Lever Roller
Limit Switch Style
General Purpose Limit Switch
Actuator Location (Limit Switch)
Side
Electrical Connection
Screw Terminals
Amps
10
Contact Form - Limit Switch
SPDT
Number of Poles
1
Mounting Hole Spacing - Limit Switch
2.21 in x 0.83 in
Operating Force
25.5 in-oz
Actuator Style (Limit Switch)
Rotary, Roller Lever
Series
Dayton
Operating Temp. Range
-14 Degrees to 158 Degrees F
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating
10 A @ 300 V
Standards
CE, CSA, UL Listed
NEMA Rating
1
Movement
Vertical
Stem Thread - Limit Switch
No Stem
DC Contact Rating
10 A @ 300 V
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Contact Form
SPDT
Roller Material
Nylon
Body Style (Limit Switch)
Miniature
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Side
Operating Temperature - Maximum
158 Degrees F
Mounting Style
Surface
Operating Torque - Maximum
1.59 in-lb
Number of Mounting Holes
4
Mounting Hole Vertical Center to Center Distance
56 mm
NEMA Enclosure Rating
1
Operating Temperature - Minimum
-14 Degrees F
Mounting Hole Horizontal Center to Center Distance
21 mm
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.41 in, Body Width - Limit Switch 1.12 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, Mounting - Limit Switch Surface, Electrical Connection Screw Terminal
