  13. IECPowerContactor, NoReverse, 21-28VAC/DC

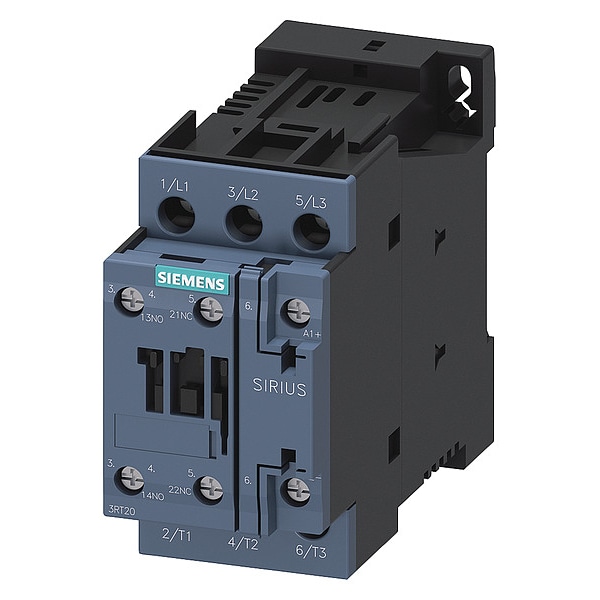

Siemens IECPowerContactor, NoReverse, 21-28VAC/DC 3RT20241NB30 - main

IECPowerContactor, NoReverse, 21-28VAC/DC

  • Mfr # 3RT20241NB30

  • Zoro # G8359496

product price: $262.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
21 to 28 V AC/DC
HP @ 1 Phase - 120V
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20241NB30
Zoro #
G8359496
UPC #
662643915051
Country of Origin
Germany

Dimensions

Height
85 mm
Width
45 mm
Depth
107 mm
Mounting Hole Distance - Height
2.36 in
Mounting Hole Diameter
0.19 in
Frame Size
S0
Overall Width
2.15 in
Mounting Hole Distance - Width
1.38 in
Overall Height
3.65 in
Overall Depth
4.6 in

Details

Full Load Amps-Inductive
12 A
Item
IEC Power Contactor
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
21 to 28 V AC/DC
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
7 1/2 hp
Series
SIRIUS 3RT20
Hz
50/60
Aux. Contact Configuration
1NO/1NC
Frame / Series / Class / Code
S0
Auxiliary Contact Form
1NO/1NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Number of making contacts and main contacts
3
Max. rated DC voltage for controls
28 volt
max. rated AC voltage for controls (60 Hz)
28 volt
rated operational power AC-1 at 400 V
23 kilowatt
Max. rated AC voltage for controls, 50 Hz
28 volt
Rated operating power with AC-3, 400 V
6 kilowatt
Rated current [In] for the power loss specification
12 ampere
min. rated control voltage Us with AC 50 Hz
21 volt
suitable for series installation
Yes
Power loss, static, current-independent [Pls]
2 watt
min. rated control voltage Us with DC
21 volt
Connection type
Screw connection
Power loss per pole, current-dependent [PlIp]
0.3 watt
Rated operating current Ie with AC-3, 400 V
12 ampere
Horsepower @ Single Phase - 240V AC
2 hp
Maximum Operating Temperature
140 Degrees F
Phase
Three
Includes Auxiliary Contacts
Yes
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 208V AC
3 hp
Full Load Current - Resistive
40 A
Mechanical Operating Durability
10,000,000
Terminal Connection Type
Screw Terminals
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
10 hp
Mounting Style
DIN Rail, Surface
Horsepower @ Three Phase - 480V AC
7 1/2 hp
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Horsepower @ Three Phase - 240V AC
3 hp
Number of Auxillary Contacts
2
Horsepower @ Single Phase - 120V AC
1 hp
Maximum Voltage Rating
690V AC
Coil Voltage
21-28V AC/DC
Minimum Operating Temperature
-13 Degrees F
IP Rating
IP20
Full Load Current - Inductive
12 A
Response Time
4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC)
Embedded Surge Suppressor
No
Reversing Capability
Non-Reversing
Mounting Postion
Vertical

Description

IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 21-28V AC/DC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 3.65 in, Overall Width 2.15 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
