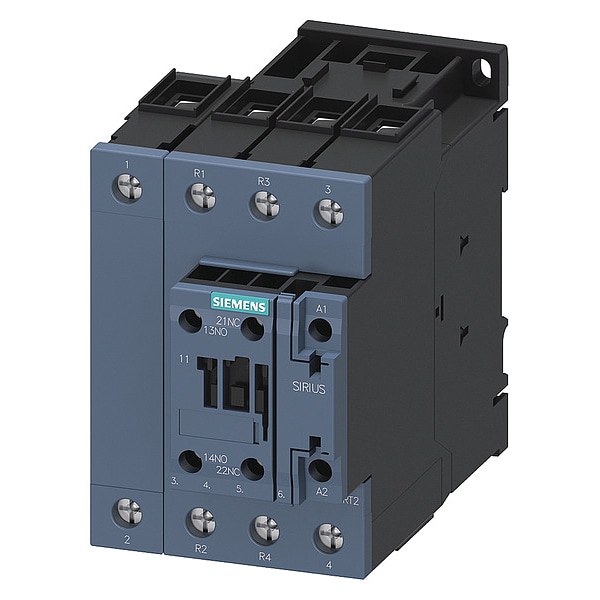

Siemens IECPowerContactor, NoReversing, 110/120VAC 3RT25351AK60 - main

IECPowerContactor, NoReversing, 110/120VAC

  • Mfr # 3RT25351AK60

  • Zoro # G8362637

product price: $311.59
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
35 A
Full Load Amps-Resistive
60 A
Number of Poles
4
Coil Volts
110/120 V AC
Height
114 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT25351AK60
Zoro #
G8362637
UPC #
887621918903
Country of Origin
Germany

Dimensions

Height
114 mm
Width
75 mm
Depth
130 mm
Mounting Hole Distance - Width
1.77 in
Mounting Hole Diameter
0.2 in
Overall Height
5.59 in
Overall Depth
4.82 in
Mounting Hole Distance - Height
3.84 in
Frame Size
S2
Overall Width
3.22 in

Details

Full Load Amps-Inductive
35 A
Item
IEC Power Contactor
Full Load Amps-Resistive
60 A
Number of Poles
4
Coil Volts
110/120 V AC
Series
SIRIUS 3RT25
Hz
50/60
Aux. Contact Configuration
2NO/2NC
Frame / Series / Class / Code
S2
Auxiliary Contact Form
1NO/1NC
Standards
REACH Art 33, WEEE (2012/19/EU)
rated operating power (AC-4, 400 V)
39 kilowatt
Rated operating current Ie with AC-1, 400 V
60 ampere
max. rated AC voltage for controls (60 Hz)
120 volt
min. rated control voltage Us with AC 60 Hz
120 volt
Rated operating power with AC-3, 400 V
19 kilowatt
description of product type
3RT25
Number of making contacts and main contacts
2
Number of main contacts as opener
2
Connection type
Screw connection
suitable for series installation
Yes
Rated operating current Ie with AC-3, 400 V
35 ampere
rated operational power AC-1 at 400 V
39 kilowatt
Max. rated AC voltage for controls, 50 Hz
110 volt
min. rated control voltage Us with AC 50 Hz
110 volt
Includes Auxiliary Contacts
Yes
Mounting Postion
Vertical
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
2
Number of Auxillary Contacts
2
Mechanical Operating Durability
10,000,000
Embedded Surge Suppressor
No
IP Rating
IP20
Full Load Current - Inductive
40 A
Frequency
50/60 Hz
Mounting Style
DIN Rail, Surface
Contactor Style
IEC
Number of Normally Closed Main Contacts
2
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
60 A
Coil Voltage
110/120V AC
Terminal Connection Type
Screw Terminals

Description

IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 4, Full Load Current - Inductive 40 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 5.59 in, Overall Width 3.22 in, Terminal Connection Type Screw Terminals, Frame Size S2, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT25, Number of Auxillary Contacts 2, Contactor Style IEC
