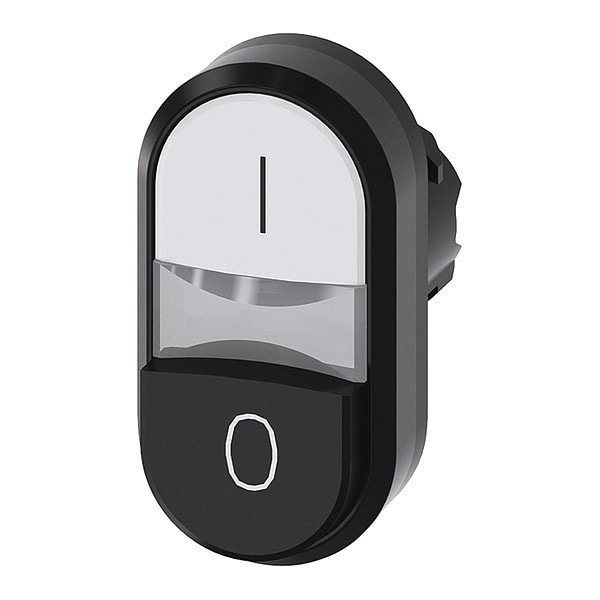

Illuminated Multi-Head Operator, 22 mm, Round

Mfr # 3SU1001-3BB61-0AK0
Zoro # G3039957

39.19

Key Features

Push Button Style

Extended; Flush

Action

Momentary

Operator Illumination

Illuminated

Panel Cutout Diameter

22 mm

Head Color

(1) Black; (1) White

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3SU1001-3BB61-0AK0
Zoro #: G3039957
UPC #: -
Country of Origin: China

Dimensions

Panel Cutout Diameter: 22 mm
Size: 22 mm
Overall Width: 1.16 in
Overall Depth: 1.39 in
Overall Height: 1.16 in

Details

Item: Push Button Operator
Push Button Style: Extended; Flush
Action: Momentary
Operator Illumination: Illuminated
Head Color: (1) Black; (1) White
Head Material: Plastic
Standards: REACH, RoHS, WEEE (2012/19/EU)
Lamp Type: No Lamp Module Included
Lamp Voltage: Module Not Included
Legend/Background Color: Black/white
Replacement Lamp: Not Replaceable
NEMA Rating: 1, 2, 3, 3R, 4, 4X
IP Rating: IP66, IP67, IP69, IP69K
Shape: Round
Type of Operator: (1) Extended Button, (1) Flush Button
Number of Heads: 2
Lamp Module Type: No Lamp Module Included
Lamp Module Voltage: Module Not Included
Bezel Material: Plastic
Number of Operators: 2
Series: 3SU
Features: Low Voltage
Product Type: Multihead Operators
NEMA Enclosure Rating: 1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification: Not Rated
Operator Material: Plastic
Operating Temperature - Maximum: 158 Degrees F
Number of Indicator Lights: 2
Operating Temperature - Minimum: -13 Degrees F

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Extended Button, (1) Flush Button, Head Material Plastic, Bezel Material Plastic, NEMA Rating 1, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color Black/White, Standards REACH, RoHS, WEEE (2012/19/EU), Features Low Voltage
