  15. Illuminated Push Button, Size 30mm, Red

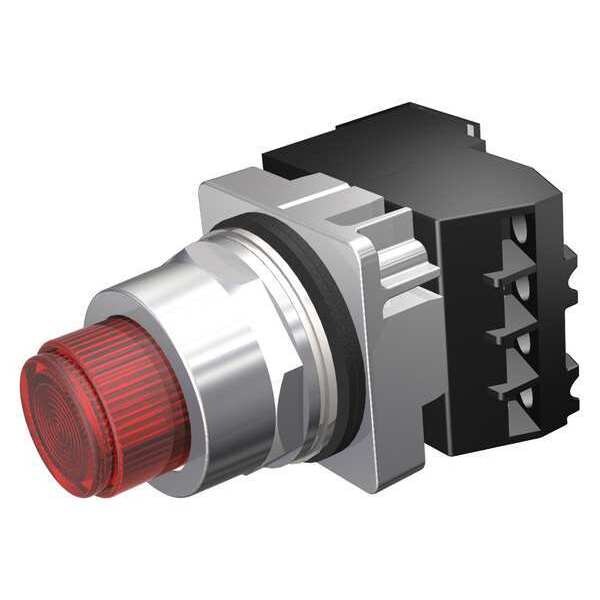

Siemens Illuminated Push Button, Size 30mm, Red 52PT6D2AP - main

Illuminated Push Button, Size 30mm, Red

  • Mfr # 52PT6D2AP

  • Zoro # G3041917

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Red
Bezel
Chrome Plated Zinc Die Cast
IP Rating
IP20, IP66
Basic Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52PT6D2AP
Zoro #
G3041917
UPC #
662643526868
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Width
2.15 in
Overall Height
4.24 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Voltage
24V AC/DC
Color
Red
Bezel
Chrome Plated Zinc Die Cast
IP Rating
IP20, IP66
Basic Material
Metal
Lamp Module Type
Full Voltage
Terminal Connection
Screw
Lamp Voltage
24V AC/DC
Contact Form
1NO/1NC
Action
Momentary
Lamp Module Voltage
24V AC/DC
Contact Type
1NO/1NC
Head Material
Plastic
Lamp Type
Incandescent
Type of Operator
Extended Button
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Number of Operators
1
Standards
CSA, REACH, UL Listed
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
NEMA Contact Rating Designation
A600/P600
Replacement Lamp
Mfr. No. 52AADN
Features
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Head Color
Red
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operating Temperature - Maximum
158 Degrees F
Operator Illumination
Illuminated
Series
52
Operating Temperature - Minimum
31 Degrees F
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Operator Material
Metal
Lamp Voltage - Maximum
24 V AC/DC
AC Contact Rating
10 A @ 600 V
Push Button Style
Extended
DC Contact Rating
5 A @ 600 V
Resistance Properties
Oil and Grease Resistant, Watertight
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC
Mechanical Operating Durability
3.00 x 10^5

Description

Illuminated Push Button, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
