  11. Industrial Ethernet FC TP Marine Cable,
Siemens Industrial Ethernet FC TP Marine Cable, 6XV18404AH10 - main

Industrial Ethernet FC TP Marine Cable,

  • Mfr # 6XV18404AH10

  • Zoro # G8364028

product price: $18.59
/ea
Sold in multiples of 20 for $371.80

Key Features

Cable Length
279 ft
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Temp. Range
-13 Degrees F to 158 Degrees F
Item - Data Cable
Communication Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6XV18404AH10
Zoro #
G8364028
UPC #
662643218541
Country of Origin
Germany

Dimensions

Cable Length
279 ft
Conductor Size - Data Cable
22 AWG
Length - Patch Cord
85m
Outer diameter of the cable
6.5 millimetre
Diameter of conductor
0.75 millimetre
Outside Diameter
0.3 in

Details

Item
Ethernet Cable
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Temp. Range
-13 Degrees F to 158 Degrees F
Item - Data Cable
Communication Cable
Number of Conductors
4
Fire Rating - Data Cable
Not Rated
Insulation Material
Plastic
Jacket Color
Green
Shielding Material
Aluminum-Clad Foil
NEC Article and Type
Not Rated
Shielded
Shielded
Connector Type - Patch Cord
RJ45, RJ45
Cable Shape
Round
Boot Type - Data cable
Bootless, Bootless
Transmission Speed
100 Mbps
Color of coat
green
Design of shield over cabling
Film + fabric
RoHS attention of conformity
1
Min. perm. surface temperature with stationary lines
-25 degree_Celsius
min. ambient temperature during operating phase
-25 degree_Celsius
Min. perm. surface temperature with open (not stationary) lines
85 degree_Celsius
Number of wires
4
max. traction stress
150 newton
Max. perm. surface temperature with open (not stationary) lines
-40 degree_Celsius
max. ambient temperature during operating phase
70 degree_Celsius
USP information
IE FC TP Standard Cable 2x2,Industrial Ethernet,Twisted Pair
Marking of conductors
Color
halogen free (according to EN 50267-2-2)
1
Flame resistant according to standard
According to IEC 60332-3-22

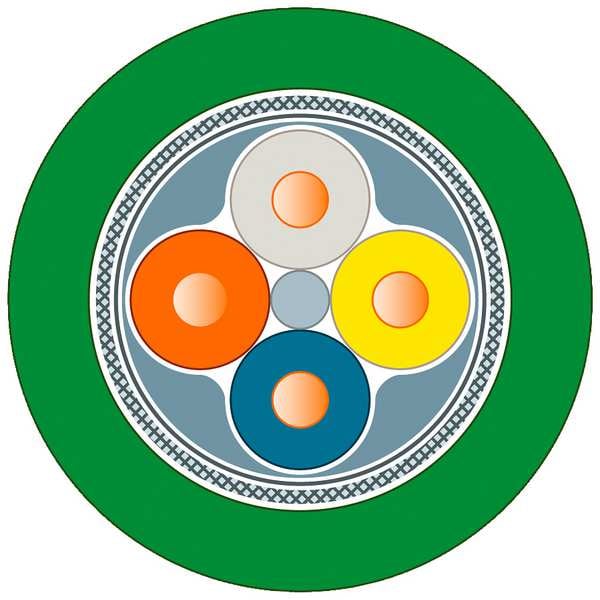

design of shield
Overlapped aluminum-clad foil, sheathed in a braided screen
Construction of the cabled element
Quad
Class of conductor
Kl.1 = single-wire
Material of the wire insulation
PP (polypropylene)
Max. perm. surface temperature with stationary lines
70 degree_Celsius
Fire Rating
Not Rated
Maximum Operating Temperature
158 Degrees F
Minimum Operating Temperature
-40 Degrees F
Maximum Voltage Rating
80 V
Resistance Properties
Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant
Maximum Impedance
100 ohm

Description

Ethernet Cable, Cable Length 279 ft, Fire Rating Not Rated, Insulation Material Plastic, Jacket Color Green, Shielded Shielded, Shielding Material Aluminum-Clad Foil, Number of Conductors 4, Outside Diameter 0.3 in, Maximum Voltage Rating 80 V, NEC Article and Type Not Rated, Standards RoHS Compliant Directive (2011/65/EU), Maximum Impedance 100 ohm, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F
