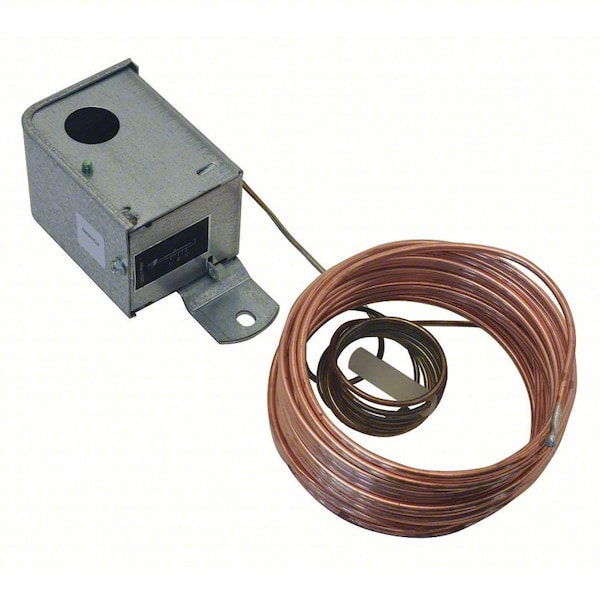

Siemens Line Voltage Mechanical Thermostat, Heat or Cool, 35 to 45F, Screwdriver, 120 to 240V AC, 1C, 1H 134-1511 - main

Line Voltage Mechanical Thermostat, Heat or Cool, 35 to 45F, Screwdriver, 120 to 240V AC, 1C, 1H

  • Mfr # 134-1511

  • Zoro # G2103687

product price:  $247.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Cooling Coils, Hydronic Heating Coils, Pipes
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
134-1511
Zoro #
G2103687
UPC #
804766001253
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
1/8 in
Capillary Length
48 in
Overall Height
3-1/4 in
Bulb Length
20 ft
Overall Depth
2-3/8 in
Overall Width
2-3/8 in
Mounting Hole Diameter
1/4 in

Details

Compatible System Type
Cooling Coils, Hydronic Heating Coils, Pipes
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
35 to 45 Degrees F
Control Type
Screwdriver
Voltage
120 to 240V AC
Item
Line Voltage Mechanical Thermostat
Includes
Mounting Bracket, Remote Sensing Bulb
Standards
CSA Certified, UL Listed
Inductive Amps @ 120V
16 A
Enclosure Type
Galvanized/Steel
Number of Switches
1
Sensor Type
Hydraulic Capillary Bulb (Copper)
Locked Rotor Amps @ 120V
96 A
Locked Rotor Amps @ 240V
48 A
Contact Rating Resistive @ 240V
8 A
Inductive Amps @ 240V
3 A, 8 A
Contact Rating Resistive @ 120V
16 A
Thermostat Type
Freeze Protection Indoor Single-Stage Controls
Resistive Amps @ 208VAC
9.2 A
For Use With
Supply Fan Motor and/or Outside Air Dampers
Features
Manual Reset
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
140 Degrees F
Mounting Direction
Horizontal
Full Load Amps @ 120V AC
16 A
Enclosure Color
Gray
Sensor Location
Remote
Minimum Control Temperature
35 Degrees F
Full Load Amps @ 240V AC
8 A
Temperature Differential
12 Degrees F
Frequency
50 Hz, 60 Hz
Maximum Control Temperature
45 Degrees F
Minimum Operating Temperature
0 Degrees F
Differential Type
Fixed
Pilot Duty Rating
125 VA @ 24 to 277V AC
Electrical Connection Type
Screw Terminal
Contact Rating
120 to 240V AC
Enclosure NEMA Rating
1
Number of Poles
1
Temperature Sensitivity
15°F to 55°F
Housing Material
Steel
Programming Capability
Not Programmable

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 35 Degrees to 45 Degrees F, Thermostat Voltage 120 to 240VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 12 Degrees F, Height 3-9/32 In., Width 5 In., Depth 2-1/2 In., Temp. Sensitivity 15 to 55
