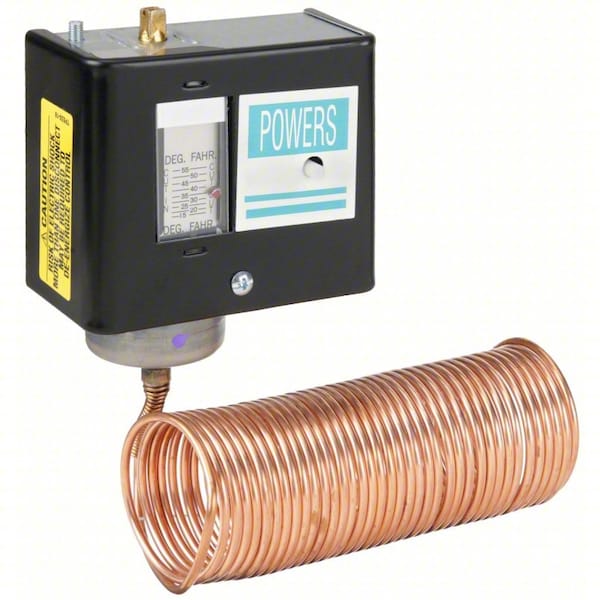

Line Voltage Mechanical Thermostat, Cool Only, 15 to 55F, Screwdriver, 120 to 240V AC, 1C, 1H

  • Mfr # 134-1504
  • Zoro # G2103705
product price:
$
329.99
/ea
Free Shipping & Returns

Key Features

Application
Cool Only
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
134-1504
Zoro #
G2103705
UPC #
804766001239
Country of Origin
Mexico
Application
Cool Only
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
15 to 55 Degrees F
Control Type
Screwdriver
Voltage
120 to 240V AC
Item
Line Voltage Mechanical Thermostat
Includes
Mounting Bracket, Remote Sensing Bulb
Sensor Type
Hydraulic Capillary Bulb (Copper)
Enclosure Type
Galvanized/Steel
Locked Rotor Amps @ 120V
36 A, 96 A
Inductive Amps @ 240V
3 A, 8 A
Inductive Amps @ 120V
6 A, 16 A
Locked Rotor Amps @ 240V
18 A, 48 A
Number of Switches
1
Standards
CSA Certified, UL Listed
Contact Rating Resistive @ 240V
6 A, 8 A
Number of Relay Outputs
0
Resistive Amps @ 208VAC
6 A, 9.2 A
Thermostat Type
Freeze Protection Indoor Single-Stage Controls
Contact Rating Resistive @ 277V
6 A, 7.2 A
For Use With
Supply Fan Motor and/or Outside Air Dampers
Number of Relay Inputs
0
Contact Rating Resistive @ 120V
6 A, 16 A
Features
Manual Reset
Electrical Connection Type
Screw Terminal
Contact Rating
120 to 240V AC
Enclosure Color
Gray
Maximum Control Temperature
55 Degrees F
Temperature Sensitivity
15 Degrees F to 55 Degrees F
Full Load Amps @ 120V AC
6 A, 16 A
Pilot Duty Rating
125 VA @ 24 to 600V AC; 57.5 VA @ 120 to 300V DC
Number of Poles
2
Sensor Location
Remote
Minimum Control Temperature
15 Degrees F
Temperature Scale
Fahrenheit/Celsius
Differential Type
Fixed
Temperature Differential
5 Degrees F
Mounting Direction
Horizontal
Full Load Amps @ 240V AC
8 A
Stages
1H/1C
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel
Resistive Amps @ 208V AC
6 A, 9.2 A
Compatible Product Type
Supply Fan Motor and/or Outside Air Dampers

Dimensions

Capillary Length
20 ft
Sensing Bulb Dia.
1/8 in
Capillary Length/Bulb Diameter
20 ft Capillary, 20 ft x 1/8 in Bulb
Mounting Hole Diameter
1/4 in
Overall Depth
2-1/2 in
Bulb Length
20 ft
Overall Width
4 in
Overall Height
3-1/4 in
Bulb Diameter
1/8 in
Fits Chest Size
Manual Reset

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 15 Degrees to 55 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 5 Degrees F, Height 3-1/4 In., Width 5 In., Depth 2-1/2 In., Temp. Sensitivity 15 to 55
