Shop SIEMENS

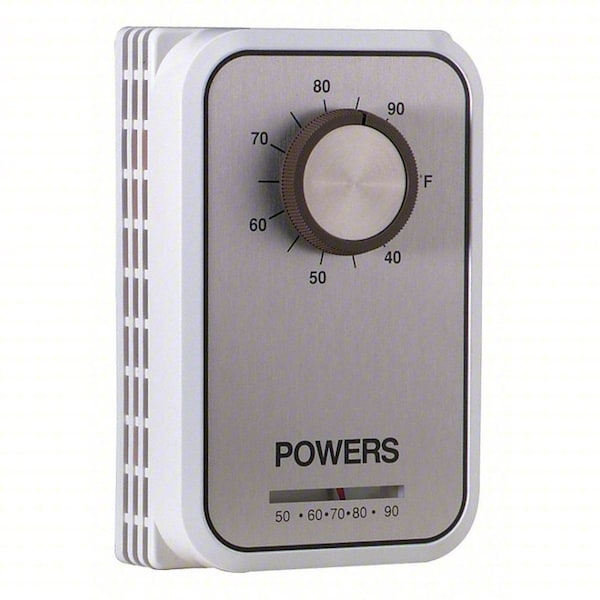

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 95F, Exposed Dial, 120 to 240V AC, 1C, 1H

  • Mfr # 134-1084

  • Zoro # G2103711

product price:  $256.79
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Electric Heating, Fan Coil Units
Display Type
Analog
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
134-1084
Zoro #
G2103711
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
20 ft
Overall Length
4-3/4 in
Overall Height
3-5/8 in
Overall Width
5-5/8 in
Overall Depth
3-5/8 in

Details

Compatible System Type
Electric Heating, Fan Coil Units
Display Type
Analog
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
40 to 95 Degrees F
Control Type
Concealed Dial, Exposed Dial
Voltage
120 to 240V AC
Item
Line Voltage Mechanical Thermostat
Sensor Type
Bi-Metallic Spring
Standards
UL Listed
Contact Rating Resistive @ 240V
10 A
Inductive Amps @ 240V
3 A
Inductive Amps @ 208V
10 A
Inductive Amps @ 120V
6 A
Contact Rating Resistive @ 120V
10 A
Enclosure Type
Galvanized/Steel
Resistive Amps @ 208VAC
10 A
Contact Rating Resistive @ 277V
10 A
Includes
Faceplate, Mounting Plate
Number of Switches
1
For Use With
Unit Heaters, Fan Coils, Blast Coils, Refrigerated Storage Rooms, Electric Heat, Duct Furnaces, Greenhouses
Number of Relay Inputs
0
Thermostat Type
Line Voltage
Number of Relay Outputs
0
Features
Manual Reset
Temperature Limiting
Yes
Stages
1H/1C
Number of Poles
1
Contact Type
Snap Action
Changeover Type
Automatic
Full Load Amps @ 240V AC
3 A
Temperature Differential
1.8 Degrees F (Heating), 2.3 Degrees F (Cooling)
Mounting Direction
Vertical
Full Load Amps @ 120V AC
6 A
System Settings
Auto
Enclosure Color
Beige
Switch Positions
On-Off
Contact Rating
120 to 240V AC
Maximum Control Temperature
95 Degrees F
Temperature Scale
Fahrenheit/Celsius
Minimum Control Temperature
40 Degrees F
Electrical Connection Type
Screw Terminals
Shape
Rectangle
Programming Capability
Not Programmable
Resistive Amps @ 208V AC
10 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 6 A, Full Load Amps @ 240VAC 3 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 1.8 Degrees F, Height 4 11/32 in, Width 3 in, Depth 2 in, Temp. Sensitivity 40 to 90
