Shop WHITE-RODGERS

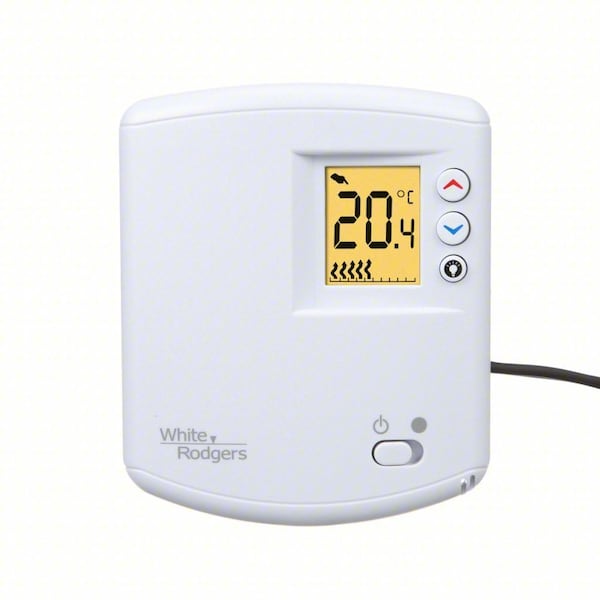

Line Voltage Thermostat, Heat Only, 45 to 90F, Slide Switch, 120V AC, 1H

  • Mfr # 01E65 144

  • Zoro # G1437816

product price:  $45.79
/ea

Key Features

Compatible System Type
Electric Heating
Display Type
Digital
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
01E65 144
Zoro #
G1437816
UPC #
786710533112
Country of Origin
Viet Nam

Dimensions

Overall Height
5 in
Overall Depth
1-1/4 in
Overall Width
4-3/16 in

Details

Compatible System Type
Electric Heating
Display Type
Digital
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
45 to 90 Degrees F
Control Type
Slide Switch
Voltage
120V AC
Mounting
Vertical
Item
Line Voltage Thermostat
Sensor Type
Thermistor
Includes
Mounting Hardware, Positive Off, Temperature Readout
Number of Switches
1
Standards
CSA
Thermostat Type
Line Voltage
Contact Rating Resistive @ 240V
16.7 A
Contact Rating Resistive @ 120V
16.70 A
For Use With
Electric Heating Systems up to 4000 Watts
Key Pad Lockout
No
System Settings
Heat-Off
Backlit Screen
No
Maximum Operating Humidity
85%
Minimum Operating Temperature
32 Degrees F
Minimum Control Temperature
45 Degrees F
Full Load Amps @ 240V AC
16.7 A
Housing Material
Plastic
Temperature Differential
1 Degrees F
Maximum Control Temperature
90 Degrees F
Temperature Sensitivity
0.2 Degrees F
Temperature Readout
Yes
Temperature Scale
Fahrenheit/Celsius
Stages
1H
Differential Type
Adjustable
Includes Positive Off
Yes
Frequency
50 Hz, 60 Hz
Mounting Direction
Vertical
Fan Settings
No Fan Setting
Maximum Operating Temperature
99 Degrees F
Programming Capability
Not Programmable
Full Load Amps @ 120V AC
16.7 A
Enclosure Color
White
Housing Color
White
Operating Temperature Range
32 Degrees to 99 Degrees F

Description

Line Voltage Thermostat, Thermostat Programmable No, Thermostat Heating/Cooling Heating, Thermostat Switch Type SPST, Thermostat Control Range 45 Degrees to 90 Degrees F, Thermostat Voltage 120 to 240V AC, 16.7 A, 16.7 A, Temp. Sensitivity 0.2 Degrees F, Sensor Type Thermistor, Switch Action Open on Rise, Number of Switches 1, Differential 1 Degrees F, Height 5 in, Width 4 3/16 in, Depth 1 1/4 in, Display Type Digital, Color White
