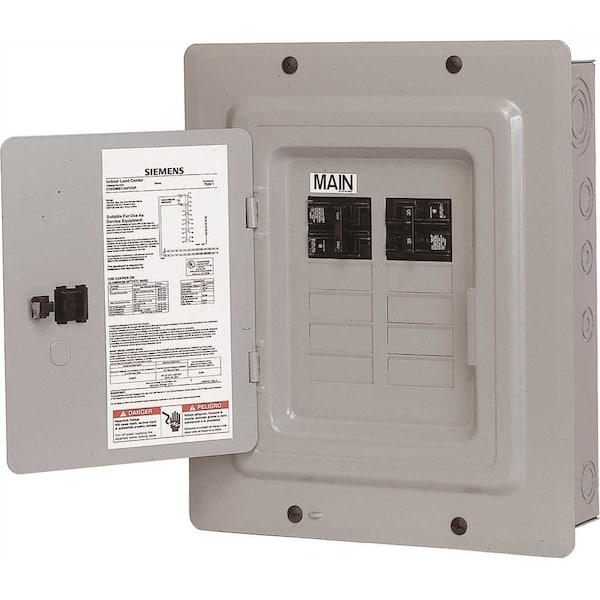

Load Center, E10, 10 Spaces, 100A, 120/240V AC, Main Circuit Breaker, 1 Phase (Discontinued)

This Siemens ES Series Load Center is the smart choice for contractors when value and quick installation are of highest priority. 100% neutrals, 3 Q120U circuit breakers and 1 Q230U circuit breaker and the ground bar is not included. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.

• Single phase, 100 Amp main breaker load center with 10-spaces/20-circuits
• Includes 2 Q115 single-pole 15 Amp breakers and 1 Q230 double-pole 30 Amp breaker
• Aluminum bus
• Features Siemens patented Insta-Wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
• Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
• All ES Series load centers allow the main breaker to be converted to main lug, but not vice versa
• Single sided inboard neutral on 24-circuits and below; dual on 30-circuits and above
• Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
• A rigid, sturdy base pan provides the ruggedness required for the harshest applications
• NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
