  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 45 A

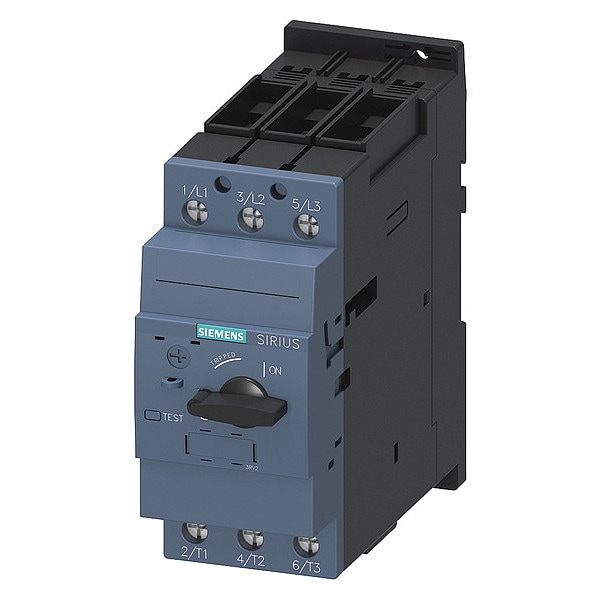

Siemens Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 45 A 3RV20314VA10 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 45 A

  • Mfr # 3RV20314VA10

  • Zoro # G4445508

product price: $434.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
45 A
Series
Sirius 3RV20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RV20314VA10
Zoro #
G4445508
UPC #
887621920081
Country of Origin
Germany

Dimensions

Frame Size
S2
Mounting Hole Diameter
1.38 in
Overall Width
2.9 in
Overall Height
7.1 in
Overall Depth
7 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
45 A
Series
Sirius 3RV20
Standards
Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
HP @ 1 Phase - 230V
10 hp
Description/Special Features
Self Protected Combination Motor Controllers
HP @ 3 Phase - 575V
50 hp
Phase Loss Sensitivity
Yes
Pilot Light
Yes
Integrated auxiliary switch present
No
Rated operating power with AC-3, 230 V
11 kilowatt
Power loss per pole, current-dependent [PlIp]
8.2 watt
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
65000 ampere
Rated permanent current Iu
45 ampere
Rated operating power with AC-3, 400 V
22 kilowatt
Greatest value of overload release adjustment range
45 ampere
Sensitive to phase failure
Yes
Integrated undervoltage tripper present
No
Lowest value of setting range for overload tripper
35 ampere
Release system
magnetic
description of product type
3RV2
Horsepower @ Three Phase - 600V AC
50 hp
Horsepower @ Three Phase - 208V AC
15 hp
Terminal Connection Type
Screw Terminals
Horsepower @ Single Phase - 120V AC
3 hp
Maximum Voltage Rating
690V AC
Mounting Style
DIN Rail
Electrical Operating Durability
100,000
Starter Style
IEC
Maximum Operating Temperature
140 Degrees F
Includes Pilot Light
No
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
15 hp
Minimum Operating Temperature
-4 Degrees F
Mechanical Operating Durability
100,000
Overload Protection Type
Thermal
Minimum Overload Relay Current Setting
35 A
Horsepower @ Single Phase - 240V AC
10 hp
IP Rating
IP20
Horsepower @ Three Phase - 480V AC
40 hp
Frequency
50/60 Hz

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 10 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 45 A, Horsepower @ Three Phase - 208V AC 15 hp, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 40 hp, Series Sirius 3RV20, Horsepower @ Three Phase - 600V AC 50 hp, Maximum Overload Relay Current Setting 45 A
