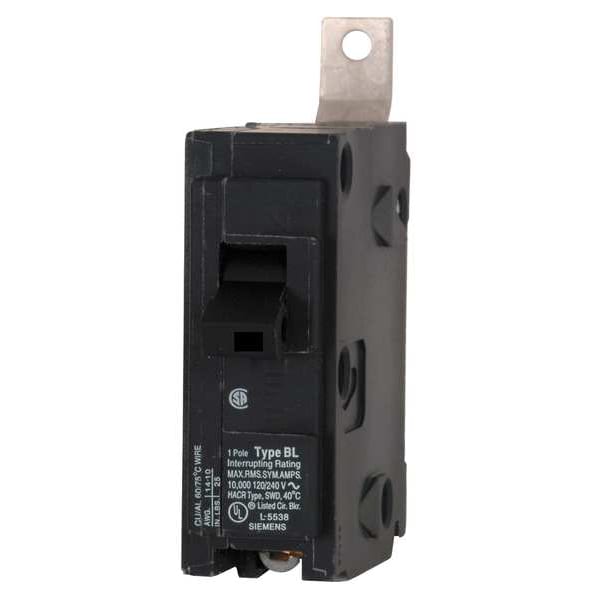

Miniature Circuit Breaker, BL Series, 70A, 1 Pole, 120/240V AC, 22kA at 120V AC

  • Mfr # B170H

  • Zoro # G2012595

product price:  $185.99
/ea
Free Shipping & Returns

Key Features

Series
BL
AC Voltage Rating
120/240V AC
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
B170H
Zoro #
G2012595
UPC #
783643263888
Country of Origin
Mexico

Dimensions

Frame Size
125A/BLH
Width
1 in
Depth
3 in
Height
3-3/4 in
Min. Wire Size
8 AWG
Max. Wire Size
2 AWG (Al), 4 AWG (Cu)
Length
3.8 in

Details

Item
Miniature Circuit Breaker
Series
BL
Amps
70A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
22kA at 120V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
HACR Rated, UL Listed
For Use With
Siemens P1 Panelboards
Features
UL listed for use with 60/75 DEG C wire through 12
Compatible Panelboard/Load Center Series
P1
Voltage
120VAC

Description

Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BL, Max. AIR Rating 22kA at 120V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BLH, Length 3.8 in, Width 1 in, Depth 3 in, Min. Wire Size 8 AWG
