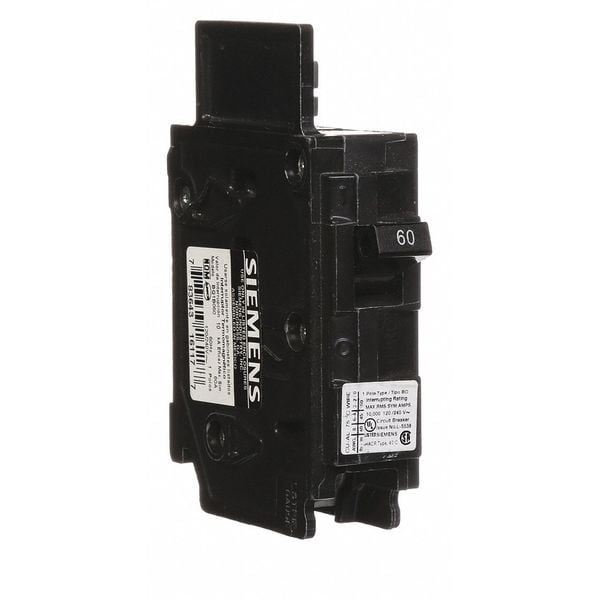

Miniature Circuit Breaker, BQ Series, 60A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # BQ1B060
Zoro # G0281346
product price:Â $76.55
/eaKey Features
Series
BQ
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BQ1B060
- Zoro #
- G0281346
- UPC #
- 783643161177
- Country of Origin
- Mexico
Dimensions
- Frame Size
- 125A/BQ
- Width
- 1 in
- Depth
- 3 in
- Height
- 4 in
- Min. Wire Size
- 8 AWG
- Max. Wire Size
- 2 AWG (Al), 4 AWG (Cu)
- Length
- 4 in
Details
- Item
- Miniature Circuit Breaker
- Series
- BQ
- Amps
- 60A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 10kA at 120V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- For Use With
- Siemens Panelboards
- Standards
- CSA Certified, HACR Rated, UL Listed
- Application
- Electrical Distribution
- Voltage
- 120VAC
Description
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series BQ, Max. AIR Rating 10kA at 120V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 4 in, Width 1 in, Depth 3 in, Min. Wire Size 8 AWG, Max. Wire Size 2 AWG (Al), 4 AWG (Cu), Standards CSA Certified, HACR Rated, UL Listed
