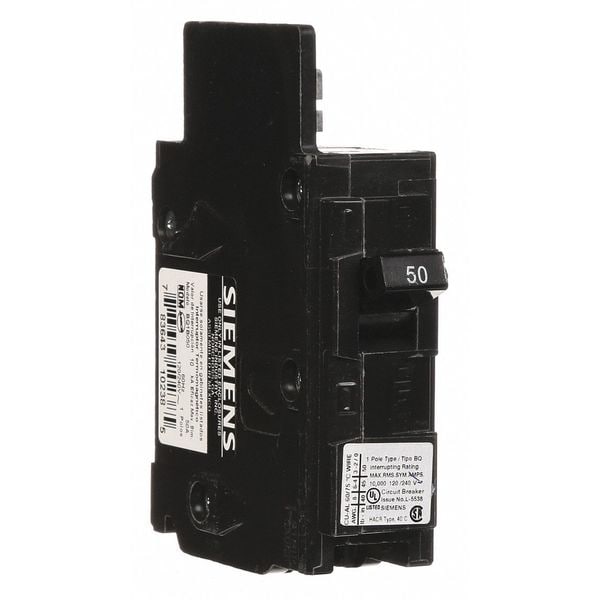

Miniature Circuit Breaker, BQ Series, 50A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # BQ1B050
Zoro # G2509647
product price:Â $78.45
/ea
Free Shipping & Returns
Key Features
Series
BQ
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
BQ1B050
Zoro #
G2509647
UPC #
783643102385
Country of Origin
Mexico
Dimensions
Frame Size
125A/BQ
Width
1 in
Depth
3 in
Height
4 in
Max. Wire Size
4 AWG (Al), 6 AWG (Cu)
Min. Wire Size
8 AWG
Length
4 in
Details
Item
Miniature Circuit Breaker
Series
BQ
Amps
50A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
10kA at 120V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Siemens Panelboards
Standards
CSA Certified, HACR Rated, UL Listed
Application
Electrical Distribution
Voltage
120VAC
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series BQ, Max. AIR Rating 10kA at 120V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 4 in, Width 1 in, Depth 3 in, Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Al), 6 AWG (Cu), Standards CSA Certified, HACR Rated, UL Listed
