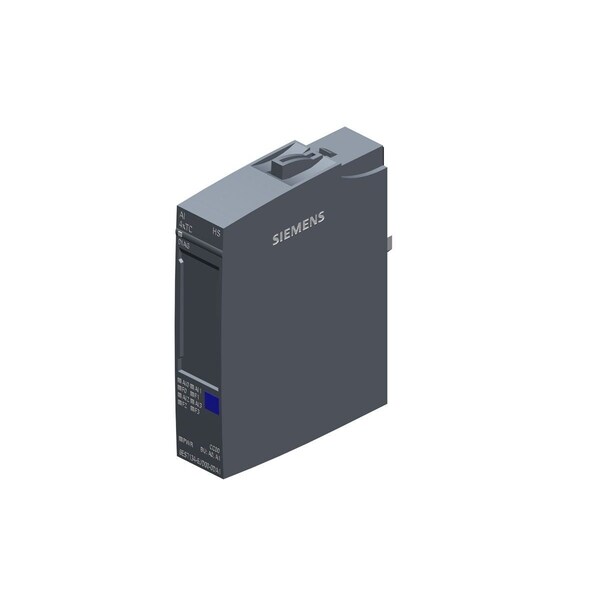

Siemens Module 6ES7134-6JD00-0DA1 - main

Module

  • Mfr # 6ES7134-6JD00-0DA1

  • Zoro # G809016254

product price: $571.99
/ea
Free Shipping & Returns

Key Features

Width
15 millimetre
Height
73 millimetre
Depth
58 millimetre
Number of HW interfaces Wireless
0
Manufacturer product family
ET 200SP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7134-6JD00-0DA1
Zoro #
G809016254
UPC #
-
Country of Origin
Germany

Dimensions

Width
15 millimetre
Height
73 millimetre
Depth
58 millimetre

Details

Number of HW interfaces Wireless
0
Manufacturer product family
ET 200SP
Power loss, static, current-independent [Pls]
1 watt
Input, current present
No
Input, voltage present
Yes
Input signal can be configured
Yes
Number of HW interfaces Industrial Ethernet
0
Resolution of the analog inputs
16 bit
Corresponding operating medium (Ex ia)
No
Number of HW interfaces serial TTY
0
description of product type
AI 4xTC HS
Number of analog outputs
0
Front installation possible
Yes
Number of HW interfaces serial RS422
0
Number of HW interfaces, other
0
Protection type IP
IP20
Field bus connection possible via separate bus couplers
Yes
Number of HW interfaces parallel
0
Number of HW interfaces serial RS485
0
Number of analog inputs
4
Input, resistance thermometer present
No
wall mounting/direct mounting possible
No
min. supply voltage with DC
19 volt
System components present
Yes
Corresponding operating medium (Ex ib)
No
Supply voltage type
DC
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Input, thermoelement present
Yes
analog inputs, configurable
Yes
Number of HW interfaces PROFINET
0
Rack-assembly possible
Yes
Manufacturer product root
Analog module input
Input, resistance present
No
max. supply voltage with DC
28.8 volt
Number of HW interfaces serial RS232
0
Bearing track assembly possible
Yes

Description

SIMATIC ET 200SP, Analog input , AI 4xTC High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%
