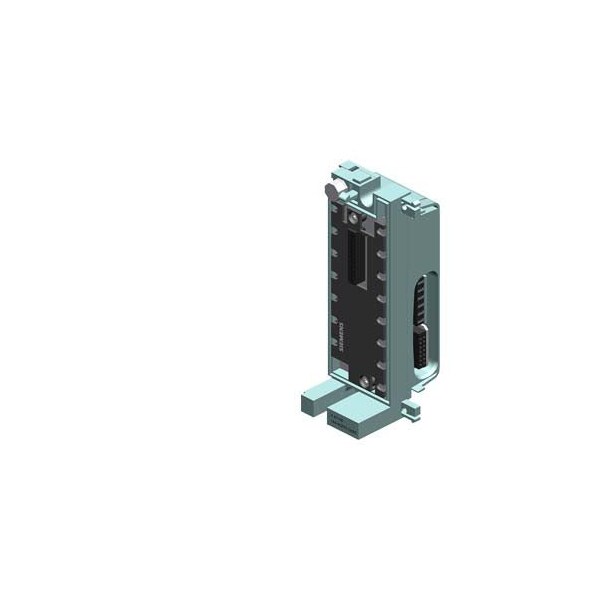

Module

  • Mfr # 6ES7144-4GF01-0AB0
  • Zoro # G709016354
product price:
$
638.99
/ea
Free Shipping & Returns

Key Features

Height
130 millimetre
Depth
35 millimetre
Width
45 mm
Protection type IP
IP67
Input, thermoelement present
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6ES7144-4GF01-0AB0
Zoro #
G709016354
UPC #
-
Country of Origin
Germany
Protection type IP
IP67
Input, thermoelement present
No
Number of HW interfaces parallel
0
description of product type
4AI I HF
Input, voltage present
No
min. supply voltage with DC
20 volt
Number of HW interfaces serial TTY
0
Number of analog inputs
4
Corresponding operating medium (Ex ia)
No
Design of electrical connection
Connector M12
Number of HW interfaces Wireless
0
Number of HW interfaces Industrial Ethernet
0
analog inputs, configurable
Yes
Number of HW interfaces PROFINET
0
Supply voltage type
DC
Number of HW interfaces serial RS485
0
Input, resistance thermometer present
No
Bearing track assembly possible
Yes
Number of HW interfaces, other
0
Number of HW interfaces serial RS232
0
Number of analog outputs
0
System components present
Yes
Input signal can be configured
Yes
Front installation possible
Yes
Corresponding operating medium (Ex ib)
No
Input, resistance present
No
Power loss, static, current-independent [Pls]
1 watt
Number of HW interfaces serial RS422
0
wall mounting/direct mounting possible
Yes
max. supply voltage with DC
28.8 volt
Manufacturer product family
ET 200pro
Input, current present
Yes
Resolution of the analog inputs
15 bit
Rack-assembly possible
No
Field bus connection possible via separate bus couplers
Yes
Manufacturer product root
Analog module input

Dimensions

Height
130 millimetre
Depth
35 millimetre
Width
45 mm

Description

SIMATIC DP, Electronic for ET 200 PRO 4 AI I High Feature, +-20 mA, 0...20 mA, 4-20mA, Channel diagnostics, incl. bus , Connection IO 6ES7194-4..00-0AA0 order separately
