Shop SIEMENS

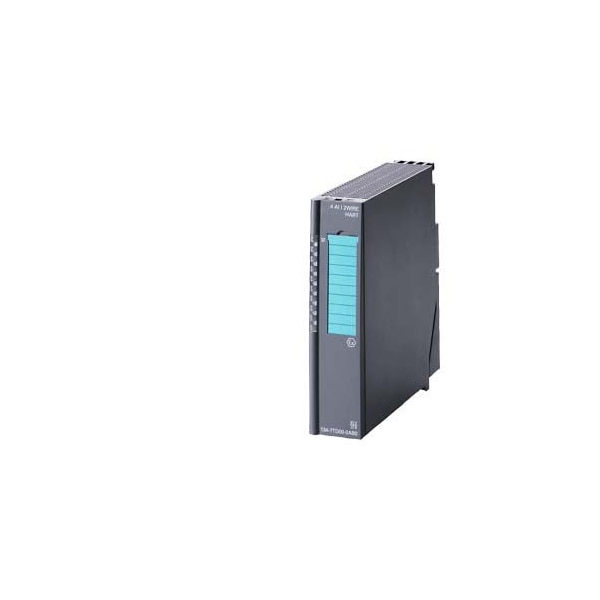

Module

  • Mfr # 6ES7134-7SD51-0AB0
  • Zoro # G209016335
product price:
$
1,455.99
/ea
Free Shipping & Returns

Key Features

Depth
137 millimetre
Height
129 millimetre
Width
30 mm
Corresponding operating medium (Ex ib)
Yes
Manufacturer product family
ET 200iSP
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7134-7SD51-0AB0
Zoro #
G209016335
UPC #
-
Country of Origin
Germany

Dimensions

Depth
137 millimetre
Height
129 millimetre
Width
30 mm

Details

Corresponding operating medium (Ex ib)
Yes
Manufacturer product family
ET 200iSP
Input, resistance thermometer present
Yes
Corresponding operating medium (Ex ia)
Yes
Number of HW interfaces Wireless
0
Input, resistance present
Yes
Input signal can be configured
Yes
description of product type
4AI RTD
Design of electrical connection
Screw/spring connection
Field bus connection possible via separate bus couplers
Yes
Supply voltage type
DC
Number of HW interfaces serial RS485
0
Number of analog inputs
4
Number of HW interfaces serial TTY
0
wall mounting/direct mounting possible
No
Number of HW interfaces, other
0
Rack-assembly possible
No
max. supply voltage with DC
28.8 volt
Protection type IP
IP30
Input, current present
No
Input, voltage present
No
Number of analog outputs
0
Number of HW interfaces Industrial Ethernet
0
Front installation possible
Yes
analog inputs, configurable
Yes
Explosion protected category for dusts
ATEX dust-ex-protection, Cat. 2
Power loss, static, current-independent [Pls]
0 watt
Number of HW interfaces PROFINET
0
System components present
Yes
min. supply voltage with DC
20 volt
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 2
Input, thermoelement present
No
Functional safety (SIL)
Without
Bearing track assembly possible
Yes
Number of HW interfaces serial RS422
0
Number of HW interfaces serial RS232
0
Manufacturer product root
Analog module input
Number of HW interfaces parallel
0
Resolution of the analog inputs
16 bit

Description

SIMATIC DP, electronic for ET200iSP, 4 AI, RTD, for connection of resistance thermometers PT100/NI100, Ex ib ia Ga IIC T4 Gb, Ex ib ia IIIC Da IIC T4 Gb, Ex ib ia I Mb
