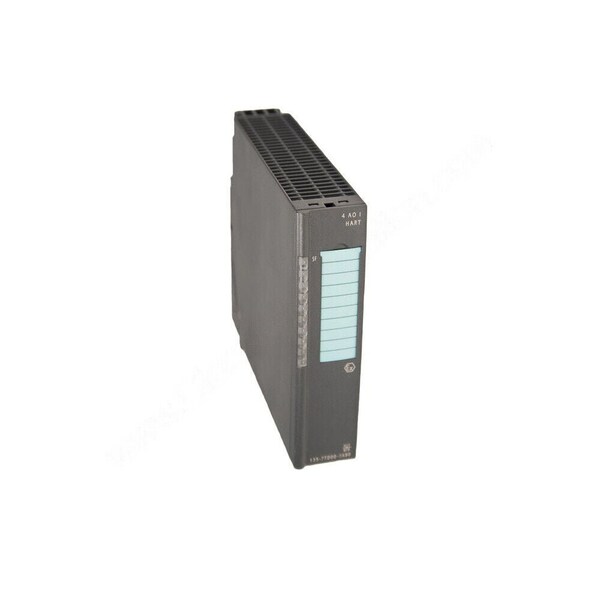

Siemens Module 6ES7135-7TD00-0AB0 - main

Module

  • Mfr # 6ES7135-7TD00-0AB0

  • Zoro # G109016084

product price: $1,272.99
/ea
Free Shipping & Returns

Key Features

Depth
137 millimetre
Height
129 millimetre
Width
30 millimetre
Rack-assembly possible
No
Number of HW interfaces, other
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7135-7TD00-0AB0
Zoro #
G109016084
UPC #
-
Country of Origin
Germany

Dimensions

Depth
137 millimetre
Height
129 millimetre
Width
30 millimetre

Details

Rack-assembly possible
No
Number of HW interfaces, other
0
Corresponding operating medium (Ex ia)
Yes
Number of HW interfaces Wireless
0
Output, voltage present
No
Number of analog inputs
0
Supply voltage type
DC
Number of HW interfaces serial RS485
0
Output signal can be configured
Yes
min. supply voltage with DC
20 volt
Number of HW interfaces PROFINET
0
max. supply voltage with DC
28.8 volt
Number of HW interfaces serial RS232
0
Number of HW interfaces serial TTY
0
Manufacturer product root
Analog module output
Manufacturer product family
ET 200iSP
Protection type IP
IP30
Number of HW interfaces serial RS422
0
Number of HW interfaces Industrial Ethernet
0
Design of electrical connection
Screw/spring connection
Field bus connection possible via separate bus couplers
Yes
Resolution of the analog outputs
14 bit
Number of analog outputs
4
Corresponding operating medium (Ex ib)
Yes
System components present
Yes
Power loss, static, current-independent [Pls]
3 watt
description of product type
4AQ I HART
Output, current present
Yes
Number of HW interfaces parallel
0
wall mounting/direct mounting possible
No
Explosion protected category for dusts
ATEX dust-ex-protection, Cat. 2
Front installation possible
Yes
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 2
Bearing track assembly possible
Yes
analog outputs, configurable
Yes

Description

SIMATIC DP, electronic for ET200iSP, 4 AO HART, 4 - 20mA, for connecting HART field devices, supported HART protocol Version 6.0, Ex ib ia Ga IIC T4 Gb, Ex ib ia IIIC Da IIC T4 Gb, Ex ib ia I Mb
