Shop SIEMENS

Module

  • Mfr # 6ES7134-6HB00-0CA1

  • Zoro # G509016509

product price:
$
541.99
/ea
Free Shipping & Returns

Key Features

Width
15 millimetre
Depth
58 millimetre
Height
73 millimetre
max. supply voltage with DC
28.8 volt
Input signal can be configured
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7134-6HB00-0CA1
Zoro #
G509016509
UPC #
-
Country of Origin
Germany

Dimensions

Width
15 millimetre
Depth
58 millimetre
Height
73 millimetre

Details

max. supply voltage with DC
28.8 volt
Input signal can be configured
Yes
Number of HW interfaces Wireless
0
Number of HW interfaces serial TTY
0
Input, voltage present
Yes
Number of analog outputs
0
Number of HW interfaces serial RS232
0
Input, resistance thermometer present
No
Bearing track assembly possible
Yes
Manufacturer product family
ET 200SP
Input, current present
Yes
Power loss, static, current-independent [Pls]
1 watt
min. supply voltage with DC
19 volt
Corresponding operating medium (Ex ib)
No
Number of HW interfaces parallel
0
Supply voltage type
DC
Input, resistance present
No
System components present
Yes
Field bus connection possible via separate bus couplers
Yes
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces, other
0
Front installation possible
Yes
Manufacturer product root
Analog module input
Number of HW interfaces serial RS485
0
Number of HW interfaces serial RS422
0
Number of analog inputs
2
analog inputs, configurable
Yes
Input, thermoelement present
No
wall mounting/direct mounting possible
No
description of product type
AI 2xU/I 2-/4-wire HF
Number of HW interfaces Industrial Ethernet
0
Resolution of the analog inputs
16 bit
Number of HW interfaces PROFINET
0
Rack-assembly possible
Yes
Protection type IP
IP20
Corresponding operating medium (Ex ia)
No

Description

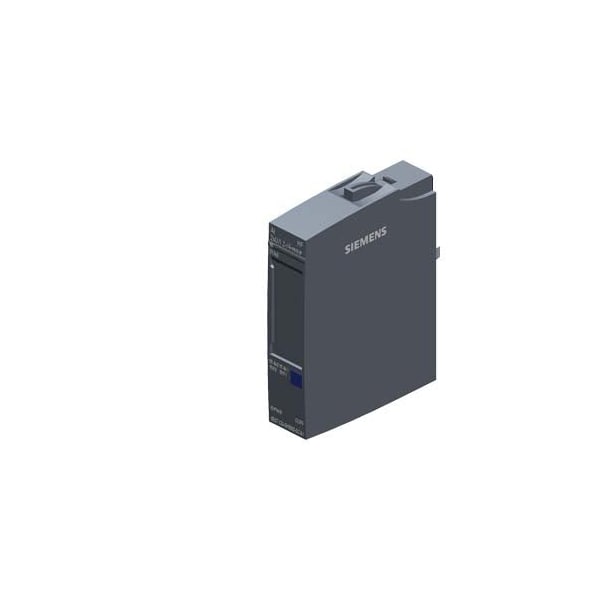

SIMATIC ET 200SP, Analog input , AI 2x U/I 2-.4-wire High Feat., suitable for BU type A0, A1, Color code CC05, channel diagnostics, 16 bit, +/-0.1%
