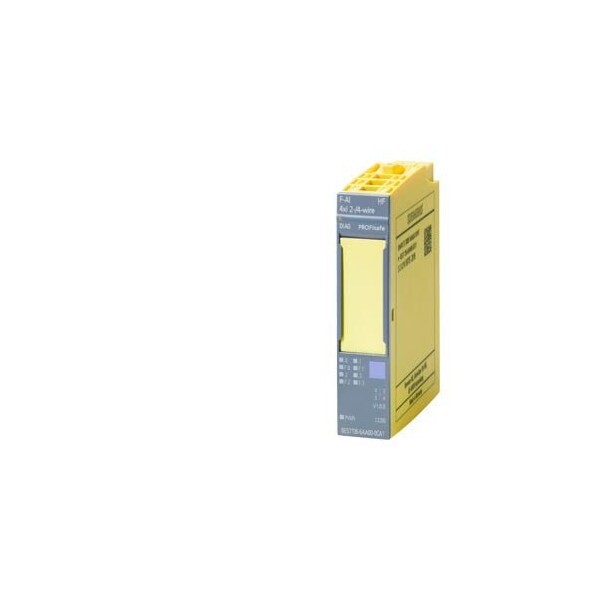

Siemens Module 6ES7136-6AA00-0CA1 - main

Module

  • Mfr # 6ES7136-6AA00-0CA1

  • Zoro # G609016089

product price: $1,391.99
/ea
Free Shipping & Returns

Key Features

Height
73 millimetre
Depth
58 millimetre
Width
15 millimetre
Field bus connection possible via separate bus couplers
Yes
Number of analog outputs
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6ES7136-6AA00-0CA1
Zoro #
G609016089
UPC #
-
Country of Origin
Germany

Dimensions

Height
73 millimetre
Depth
58 millimetre
Width
15 millimetre

Details

Field bus connection possible via separate bus couplers
Yes
Number of analog outputs
0
Input, resistance present
No
Power loss, static, current-independent [Pls]
2 watt
Number of HW interfaces PROFINET
0
Number of HW interfaces, other
0
Number of HW interfaces serial RS232
0
Bearing track assembly possible
Yes
Number of HW interfaces serial RS422
0
Supply voltage type
DC
Number of HW interfaces Wireless
0
Input, voltage present
No
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Input, thermoelement present
No
Protection type IP
IP20
Number of analog inputs
4
analog inputs, configurable
Yes
wall mounting/direct mounting possible
No
Resolution of the analog inputs
16 bit
Performance level acc. to EN ISO 13849-1
E
description of product type
F-AI 4xI 0(4)..20mA 2-/4-wire HF
Corresponding operating medium (Ex ib)
No
Input, resistance thermometer present
No
Front installation possible
No
Number of HW interfaces Industrial Ethernet
0
Corresponding operating medium (Ex ia)
No
Functional safety (SIL)
SIL 3
Manufacturer product root
Analog module input
min. supply voltage with DC
19 volt
Rack-assembly possible
Yes
Number of HW interfaces serial TTY
0
max. supply voltage with DC
28.8 volt
Manufacturer product family
ET 200SP
Input, current present
Yes
Number of HW interfaces parallel
0
Input signal can be configured
Yes
Number of HW interfaces serial RS485
0
System components present
Yes

Description

SIMATIC DP, electronic ET 200SP, F-AI 4xI04..20 mA HF fail-safe analog inputs up to PL e ISO 13849 up to SIL 3 IEC 61508
