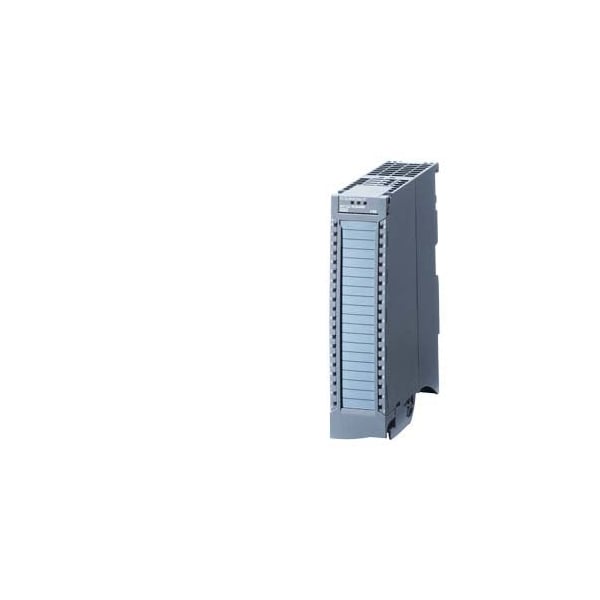

Siemens Module 6ES7522-5HF00-0AB0 - main

Module

  • Mfr # 6ES7522-5HF00-0AB0

  • Zoro # G209016717

product price:  $807.99
/ea
Free Shipping & Returns

Key Features

Depth
129 millimetre
Width
35 millimetre
Height
147 millimetre
min. supply voltage with DC
19 volt
Number of inputs
0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7522-5HF00-0AB0
Zoro #
G209016717
UPC #
-
Country of Origin
Germany

Dimensions

Depth
129 millimetre
Width
35 millimetre
Height
147 millimetre

Details

min. supply voltage with DC
19 volt
Number of inputs
0
Manufacturer product family
S7-1500
Short circuit protection, outputs present
No
Design of digital output
Relay
Supply voltage type
DC
Corresponding operating medium (Ex ib)
No
Redundancy-compatible present
Yes
Number of outputs, digital
8
Output current
5 ampere
Power loss, static, current-independent [Pls]
5 watt
Max. perm. voltage
264 volt
min. permissible voltage at output
0 volt
Number of outputs
8
digital outputs, configurable
Yes
Corresponding operating medium (Ex ia)
No
Output voltage type
AC/DC
description of product type
DQ 8x230 V AC/5 A ST (relay)
Manufacturer product root
Digital module output
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of inputs, digital
0
max. supply voltage with DC
28.8 volt

Description

SIMATIC S7-1500, digital output DQ 8xAC 230V/5A ST, relay, 8 channels in groups of 1, 5 A per group, diagnostics, substitute value: switching cycle counter for integrated relay, the supports the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. front connector screw terminals or push-in to be ordered separately
