Shop SIEMENS

Module

  • Mfr # 6ES7145-4GF00-0AB0

  • Zoro # G909016468

product price:
$
614.99
/ea
Free Shipping & Returns

Key Features

Depth
35 millimetre
Height
130 millimetre
Width
45 millimetre
Supply voltage type
DC
Design of electrical connection
Connector M12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6ES7145-4GF00-0AB0
Zoro #
G909016468
UPC #
-
Country of Origin
Germany
Supply voltage type
DC
Design of electrical connection
Connector M12
Output signal can be configured
Yes
Number of HW interfaces Industrial Ethernet
0
min. supply voltage with DC
20 volt
Number of HW interfaces PROFINET
0
description of product type
4AQ I HF
Number of HW interfaces serial RS485
0
Manufacturer product root
Analog module output
Number of analog outputs
4
analog outputs, configurable
Yes
Number of HW interfaces serial TTY
0
Front installation possible
Yes
max. supply voltage with DC
28.8 volt
Rack-assembly possible
No
Number of HW interfaces serial RS232
0
Number of HW interfaces Wireless
0
Manufacturer product family
ET 200pro
Output, voltage present
No
Output, current present
Yes
Corresponding operating medium (Ex ib)
No
Field bus connection possible via separate bus couplers
Yes
Corresponding operating medium (Ex ia)
No
System components present
Yes
Number of HW interfaces parallel
0
Protection type IP
IP67
Power loss, static, current-independent [Pls]
2 watt
Bearing track assembly possible
Yes
Number of HW interfaces serial RS422
0
Number of HW interfaces, other
0
wall mounting/direct mounting possible
Yes
Number of analog inputs
0
Resolution of the analog outputs
15 bit

Description

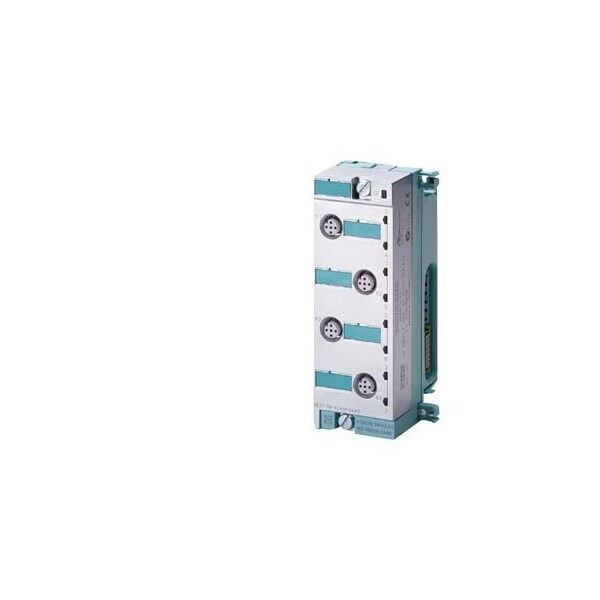

SIMATIC DP, Electronic modules for ET 200 PRO 4 AO I High Feature, +-20 mA, 0...20 mA, 4-20mA, Channel diagnostics, incl. bus , Connection IO 6ES7194-4..00-0AA0 order separately
