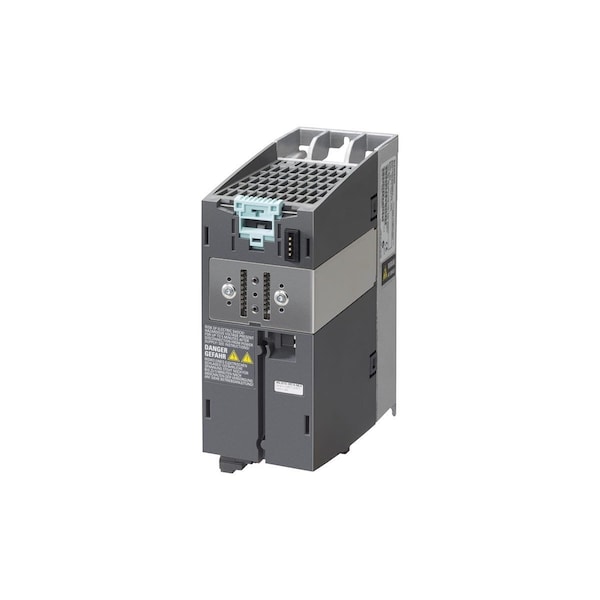

Shop SIEMENS

Module

  • Mfr # 6SL3210-1PE14-3UL1
  • Zoro # G909016680
product price:
$
757.99
/ea
Free Shipping & Returns

Key Features

Depth
165 millimetre
Width
73 mm
Height
196 millimetre
Brake chopper integrated
Yes
Use in the industrial area permissible
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6SL3210-1PE14-3UL1
Zoro #
G909016680
UPC #
-
Country of Origin
Germany

Dimensions

Depth
165 millimetre
Width
73 mm
Height
196 millimetre

Details

Brake chopper integrated
Yes
Use in the industrial area permissible
No
Relative symmetric mains voltage tolerance
10 percent
max. mains voltage
480 volt
Max. output frequency
550 hertz
max. output power with square load at rated output voltage
2 kilowatt
Min. network voltage
380 volt
Rated output current
4.1 ampere
max. output power with linear load and rated output voltage
1 kilowatt
Rated output voltage
400 volt
Output phases, number of
3
description of product type
PM240-2
Power loss, static, current-independent [Pls]
12 watt
Protection type IP
IP20
Input phase number
3
Design of frequency changer
U converter
Relative symmetric mains frequency tolerance
5 percent

Description

SINAMICS Power PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 1.1 kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 1.5kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
