Module
Mfr # 6SL3210-1PE28-8UL0
Zoro # G109016664
product price: $10,827.99
/ea
Free Shipping & Returns
Key Features
Depth
237 millimetre
Height
551 millimetre
Width
275 millimetre
description of product type
PM240-2
Max. output frequency
550 hertz
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PE28-8UL0
Zoro #
G109016664
UPC #
-
Country of Origin
Germany
Dimensions
Depth
237 millimetre
Height
551 millimetre
Width
275 millimetre
Details
description of product type
PM240-2
Max. output frequency
550 hertz
Power loss, static, current-independent [Pls]
32 watt
Design of frequency changer
U converter
max. output power with linear load and rated output voltage
37 kilowatt
Use in the industrial area permissible
No
Input phase number
3
Rated output current
90 ampere
Relative symmetric mains frequency tolerance
5 percent
Protection type IP
IP20
Relative symmetric mains voltage tolerance
10 percent
max. mains voltage
480 volt
Output phases, number of
3
max. output power with square load at rated output voltage
45 kilowatt
Min. network voltage
380 volt
Rated output voltage
400 volt
Brake chopper integrated
Yes
Description

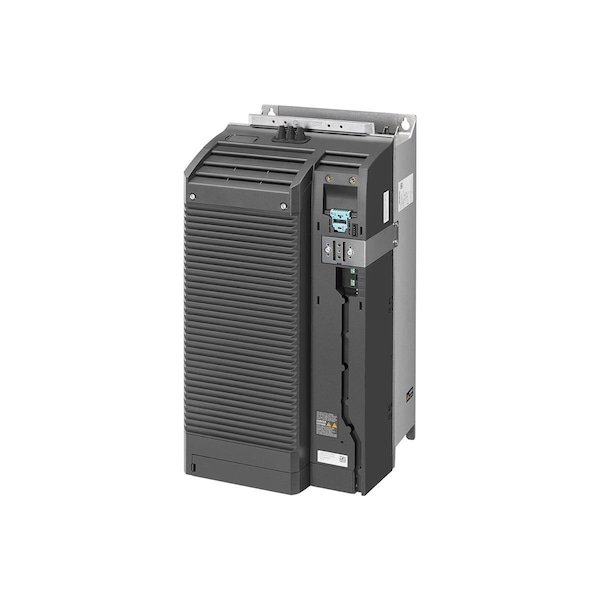

SINAMICS G120 POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 45kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 551 X 275 X 237 HXWXD, FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
