Module
Mfr # 6SL3210-1PE31-8UL0
Zoro # G209016441
product price: $13,950.99
/ea
Free Shipping & Returns
Key Features
Height
708 millimetre
Width
305 millimetre
Depth
357 millimetre
Relative symmetric mains frequency tolerance
5 percent
Min. network voltage
380 volt
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PE31-8UL0
Zoro #
G209016441
UPC #
-
Country of Origin
Germany
Dimensions
Height
708 millimetre
Width
305 millimetre
Depth
357 millimetre
Details
Relative symmetric mains frequency tolerance
5 percent
Min. network voltage
380 volt
Brake chopper integrated
Yes
Protection type IP
IP20
Output phases, number of
3
Input phase number
3
Power loss, static, current-independent [Pls]
48.1 watt
Relative symmetric mains voltage tolerance
10 percent
description of product type
PM240-2
max. output power with linear load and rated output voltage
75 kilowatt
Use in the industrial area permissible
No
Max. output frequency
550 hertz
max. mains voltage
480 volt
Rated output current
178 ampere
Design of frequency changer
U converter
max. output power with square load at rated output voltage
90 kilowatt
Rated output voltage
400 volt
Description

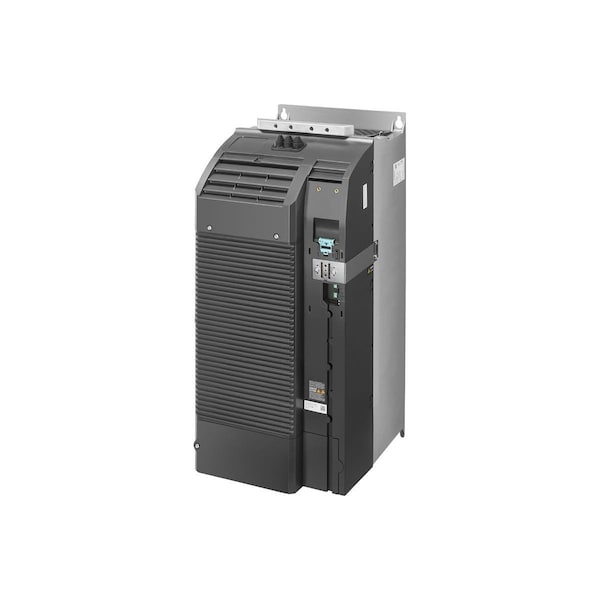

SINAMICS G120 POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 708 X 305 X 357 HXWXD, FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
