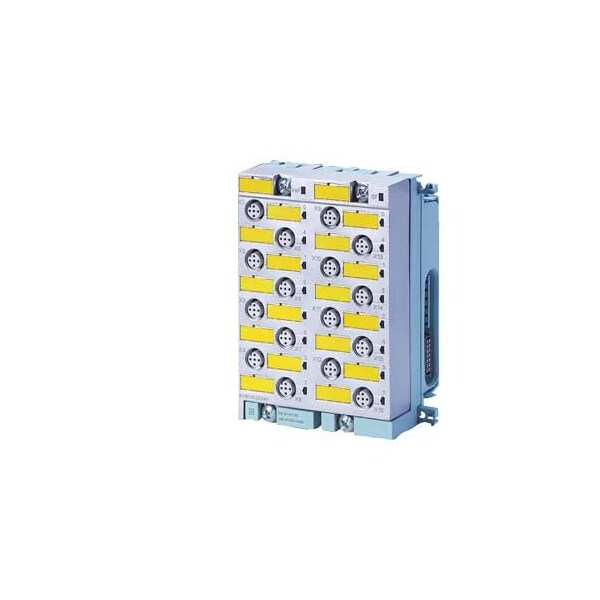

Siemens Module 6ES7148-4FC00-0AB0 - main

Module

  • Mfr # 6ES7148-4FC00-0AB0

  • Zoro # G909016536

product price:  $1,670.99
/ea
Free Shipping & Returns

Key Features

Depth
65 millimetre
Width
90 millimetre
Height
130 millimetre
Short circuit protection, outputs present
Yes
Number of HW interfaces serial RS232
0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7148-4FC00-0AB0
Zoro #
G909016536
UPC #
-
Country of Origin
Germany

Dimensions

Depth
65 millimetre
Width
90 millimetre
Height
130 millimetre

Details

Short circuit protection, outputs present
Yes
Number of HW interfaces serial RS232
0
wall mounting/direct mounting possible
Yes
max. supply voltage with DC
28.8 volt
digital outputs, configurable
Yes
min. permissible voltage at output
0 volt
Field bus connection possible via separate bus couplers
Yes
Design of electrical connection
Connector M12
Number of HW interfaces PROFINET
0
Manufacturer product family
ET 200pro
Number of HW interfaces serial RS485
0
description of product type
4/8F-DI/4F-DQ 24 V DC/2 A PROFIsafe
Front installation possible
Yes
Design of digital output
Transistor
Functional safety (SIL)
SIL 3
Bearing track assembly possible
Yes
Number of HW interfaces Industrial Ethernet
0
digital inputs, configurable
Yes
Manufacturer product root
Digital module input/output
Number of HW interfaces, other
0
Input voltage, type
DC
Rack-assembly possible
No
Number of HW interfaces parallel
0
Category safety pursuant to EN 954-1
4
Number of outputs
4
Input current for state 1
4 milliampere
Supply voltage type
DC
Min. delay time with change of signal
0 millisecond
Corresponding operating medium (Ex ia)
No
Power loss, static, current-independent [Pls]
6 watt
Number of HW interfaces Wireless
0
Corresponding operating medium (Ex ib)
No
Number of HW interfaces serial TTY
0
Output voltage type
DC
Max. perm. voltage
29 volt
Performance level acc. to EN ISO 13849-1
E
min. supply voltage with DC
20 volt
Number of HW interfaces serial RS422
0
Number of outputs, digital
4
max. permissible voltage at input
30 volt
System components present
Yes
Output current
2 ampere
Optical interface present
No
Number of inputs
8
Number of inputs, digital
8
Max. delay time with change of signal
17 millisecond
min. permissible voltage at input
-30 volt

Description

SIMATIC DP, ET200 PRO Fail-safe electronic 4/8 F-DI/4 F-DO 24 V DC/2A PROFIsafe, 90 mm overall width, up to Category 4 EN 954-1/ SIL3 IEC61508/PLE ISO13849
