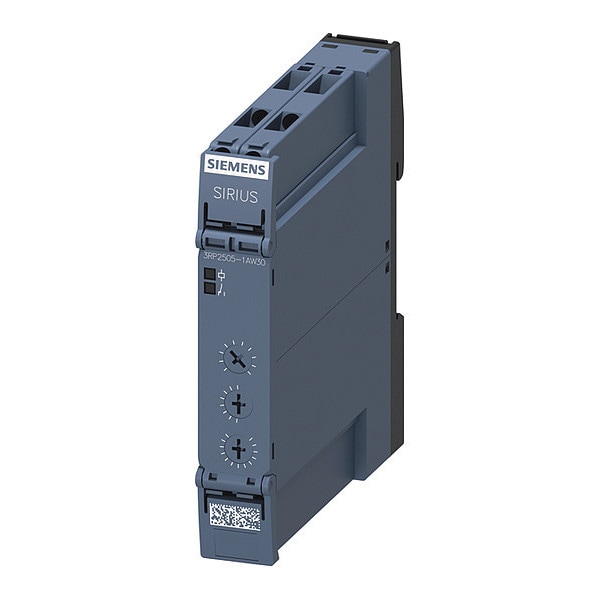

Multifunction Time Delay Relay, 12 Functions 12 to 240V AC/DC, SPDT

Mfr # 3RP25051AW30
Zoro # G2109182

231.99

Free Shipping & Returns

Key Features

Delay Function

Flasher (Starts with Break), Flasher (Starts with Pulse), Interval Delay, Interval Delay (with Control Signal), Off Delay (Passing Make Contact), Off Delay (with Control Signal), On Delay, On Delay (with Control Signal), Passing Make Contact (with Control Signal), Pulse Delayed (With Control Signal), Pulse Shaping (with Control Signal), Retriggerable, Retriggerable (with Control Signal)

Number of Delay Functions

Minimum Time Setting

0.05 sec

Maximum Time Setting

100 hr

Number of Pins

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3RP25051AW30
Zoro #: G2109182
UPC #: 887621914813
Country of Origin: Germany

Dimensions

Overall Height - Relay: 3.94 in
Body Height: 3.94 in
Body Depth: 3.54 in
Overall Depth: 3.94 in
Body Width: 0.69 in

Details

Item: Multifunction Time Delay Relay
Delay Function: Flasher (Starts with Break), Flasher (Starts with Pulse), Interval Delay, Interval Delay (with Control Signal), Off Delay (Passing Make Contact), Off Delay (with Control Signal), On Delay, On Delay (with Control Signal), Passing Make Contact (with Control Signal), Pulse Delayed (With Control Signal), Pulse Shaping (with Control Signal), Retriggerable, Retriggerable (with Control Signal)
Number of Delay Functions: 12
Minimum Time Setting: 0.05 sec
Maximum Time Setting: 100 hr
Number of Pins: 7
Coil Voltage: 12 to 240V AC/DC
Current Rating: 3 A
Contact Form: SPDT
Contact Rating (AC): 3 A @ 24/250/400V
Contact Rating (DC): 0.10 A @ 250V, 0.20 A @ 125V, 1.00 A @ 24V
Number of Functions: 13
Standards: CCC, CE Certified, CSA Certified, EAC, UL Listed
Electrical Connection: Screw Terminal
Adjustment Method: Rotary Dip Switch
Operating Functions: 11
Contact Amp Rating (Resistive): 0.7A
Contact Material: Silver Tin Oxide
Coil Rating: 3VA
Status Indicator: LED
Input Voltage: 12 to 240V AC/DC
Frequency: 50/60 Hz
Power Consumption: 3 VA
Reset Method: Time-Limit Reset
Mounting Style: DIN Rail

Description

Multi-Function Time Delay Relay, Adjustment Method Rotary Dip Switch, Coil Voltage 12 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 3 A @ 24/250/400V, Contact Rating (DC) 0.10 A @ 250V, 0.20 A @ 125V, 1.00 A @ 24V, Current Rating 3 A, Number of Delay Functions 12
