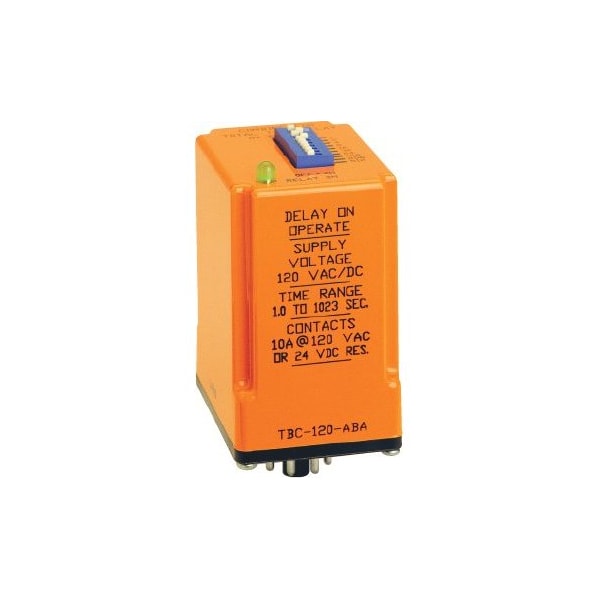

TBC Series On-Delay DIP Switch TDR
Mfr # TBC-24-A-B-A
Zoro # G109227411
product price:Â
$
202.99
/ea
Free Shipping & Returns
Key Features
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
1 sec
Number of Pins
8
Base Shape
Octal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TBC-24-A-B-A
- Zoro #
- G109227411
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- Time Delay Relay
- Delay Function
- On Delay
- Number of Delay Functions
- 1
- Minimum Time Setting
- 1 sec
- Number of Pins
- 8
- Base Shape
- Octal
- Current Rating
- 10 A
- Coil Voltage
- 24V AC/DC
- Maximum Time Setting
- 1,023 sec
- Contact Rating (DC)
- 10 A @ 24V DC
- Contact Form
- DPDT
- Contact Rating (AC)
- 10 A @ 250V AC
Description
The time delay begins when supply voltage is applied to the input. Upon completion of the delay period, the relay energizes. Reset during or after the delay period is accomplished by removal of the supply voltage. The TBC Series will not false transfer if supply voltage is removed prior to completion of the delay period. A fast recycle time permits accurate, high speed, continuous operation.
