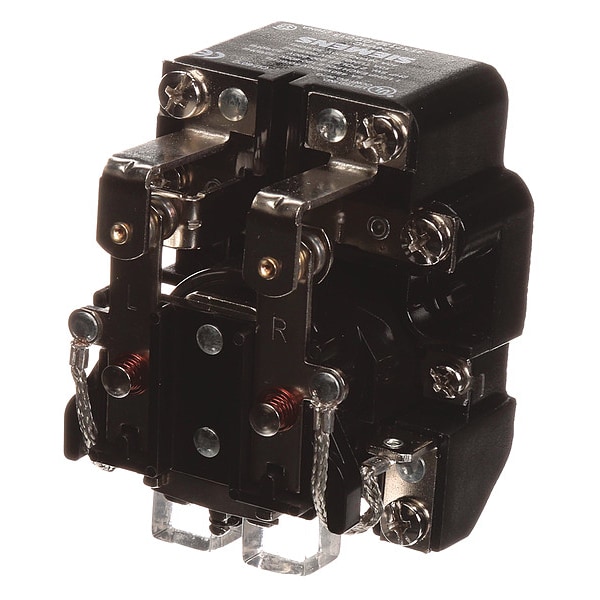

Open Power Relay, 24V AC, DPDT, Pins
Mfr # 3TX7130-0DC13
Zoro # G8524233
product price:Â
$
69.29
/ea
Key Features
Mounting Style
Surface
Coil Voltage
24V AC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
40 A @ 24V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3TX7130-0DC13
- Zoro #
- G8524233
- UPC #
- 754554762463
- Country of Origin
- China
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 24V AC
- Current Rating
- 40 A
- Contact Form
- DPDT
- Contact Rating (AC)
- 40 A @ 24V
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Standards
- REACH Art. 33, RoHS Compliant
- Contact Material
- Silver Alloy
- Features
- Heavy Duty
- Motor Rated
- Yes
- Input Voltage
- 24V AC
- Maximum Operating Temperature
- 158 Degrees F
- Electrical Operating Durability
- 100,000
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Response Time
- 30 msec
- Minimum Operating Temperature
- -40 Degrees F
- Mechanical Operating Durability
- 1,000,000
- Power Consumption
- 4 W, 10 VA
- Maximum Switching Voltage
- 600V AC
- Weight
- 11.01 oz
- Series
- 3TX71 Series
- Horsepower @ 120V AC
- 1/3 hp
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 3.12 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 24V AC
