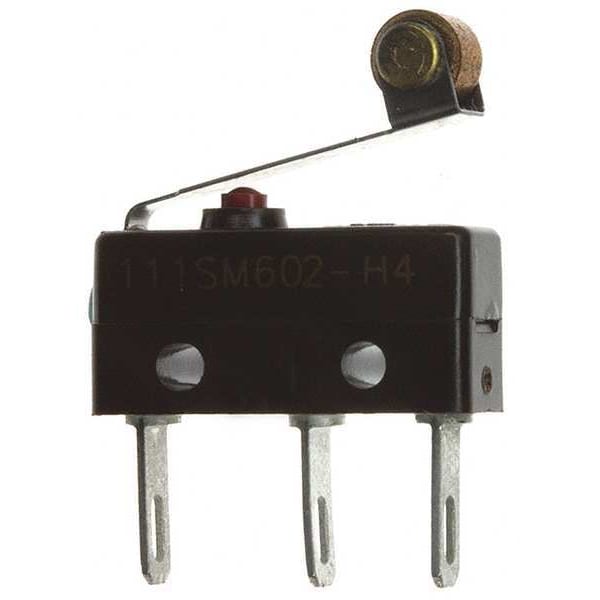

Honeywell Miniature Snap Action Switch, Lever, Roller Actuator, SPDT, 5 A at 240 V AC Contact Rating 111SM602-H4 - main

Miniature Snap Action Switch, Lever, Roller Actuator, SPDT, 5 A at 240 V AC Contact Rating

  • Mfr # 111SM602-H4

  • Zoro # G4615913

product price:  $16.69
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
5 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
0.12 in
Height - Snap Action Switch
0.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
111SM602-H4
Zoro #
G4615913
UPC #
078454972631
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
0.12 in
Height - Snap Action Switch
0.5 in
Width - Snap Action Switch
0.8 in
Depth - Snap Action Switch
0.25 in
Height
0.5"
Actuator Length
0.12"
Mounting Dimension
0.38" Centers
Mounting Dimension - Snap Action Switch
0.38 in Centers
Length
0.8"
Depth
0.25"
Overall Height
0.5 in
Body Height
0.5 in
Overall Width
0.8 in
Body Width
0.8 in
Body Depth
0.25 in
Overall Depth
0.25 in
Lever Actuator Length
0.12 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
5 A @ 240 V
Contact Form- Switches
SPDT
Housing Material
General Purpose Phenolic
Release Force
2 ozf
Watertight - Snap Action Switch
No
Operating Temp. Range
-65 Degrees to 250 Degrees F
Differential Travel
0.025 in
Electrical Connection - Snap Action Switch
Quick Connect
Contact Form
1NO/1NC
Terminal Type
Quick Connect
Operating Force
7 oz
Standards
CE 61058-1, CSA LR41372, ENEC, UL E12252
Voltage Rating
250VAC
Series
SM
Type of Actuator
Roller Lever
Max. Pretravel
0.219 in
Current Rating
5A
Over Travel
0.03 in
AC Contact Rating
5 A @ 240 V
Poles/Contacts
SPDT 1NO 1NC
Differential-Travel - max
0.025 in (0.64mm) DT
Construction
Phenolic
Type
Subminiature Limit Switch
Head Action
Spring Return, Standard
Pre-Travel - max
0.219 in (5.56mm) PT
Force to Operate
7 oz (1.95N) OF
Contact Rating
5A 250V AC
Operating Temperature
-65°F (-53°C) to 250°F (121°C)
Operator Configuration
Standard
Over-Travel
0.03 in (0.76mm) OT
Connection
Quick Connect Terminal
Operating Temperature - Maximum
250 Degrees F
Differential Travel - Maximum
0.025 in
Actuator Style
Roller Lever
Electrical Connection
Quick Connect
Overtravel
0.03 in
Body Material
Phenolic
Operating Force - Maximum
7 ozf
Center Mounting Hole Distance
0.38 in
Pretravel
0.22 in
Operating Temperature - Minimum
-65 Degrees F

Description

Miniature Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 5 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 0.12 in, Height - Snap Action Switch 0.5 in, Width - Snap Action Switch 0.8 in, Depth - Snap Action Switch 0.25 in, Electrical Connection - Snap Action Switch Quick Connect, Mounting Dimension - Snap Action Switch 0.38 in Centers, Series SM
