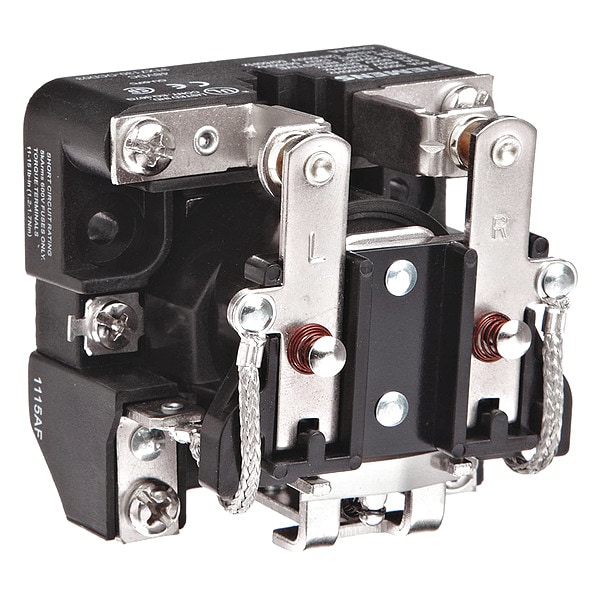

Open Power Relay, 48V DC, DPST-NO, Pins
- Mfr # 3TX7130-0CD03
- Zoro # G8523874
product price:Â
$
133.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Surface
Coil Voltage
48V DC
Current Rating
40 A
Contact Form
DPST-NO
Contact Rating (DC)
40 A @ 48V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3TX7130-0CD03
- Zoro #
- G8523874
- UPC #
- 754554768359
- Country of Origin
- China
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 48V DC
- Current Rating
- 40 A
- Contact Form
- DPST-NO
- Contact Rating (DC)
- 40 A @ 48V
- Standards
- REACH Art. 33, RoHS Compliant
- Features
- Heavy Duty
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Contact Material
- Silver Alloy
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Maximum Operating Temperature
- 158 Degrees F
- Input Voltage
- 48V DC
- Response Time
- 30 msec
- Mechanical Operating Durability
- 1,000,000
- Horsepower @ 120V AC
- 1/3 hp
- Weight
- 11.01 oz
- Series
- 3TX71 Series
- Maximum Switching Voltage
- 600V AC
- Motor Rated
- Yes
- Power Consumption
- 4 W, 10 VA
- Electrical Operating Durability
- 100,000
- Minimum Operating Temperature
- -40 Degrees F
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 48V DC, Contact Form DPST-NO, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (DC) 40 A @ 48V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 2.43 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 48V DC
