  13. Open Power Relay, Socket Mounted, DPDT, 24V DC

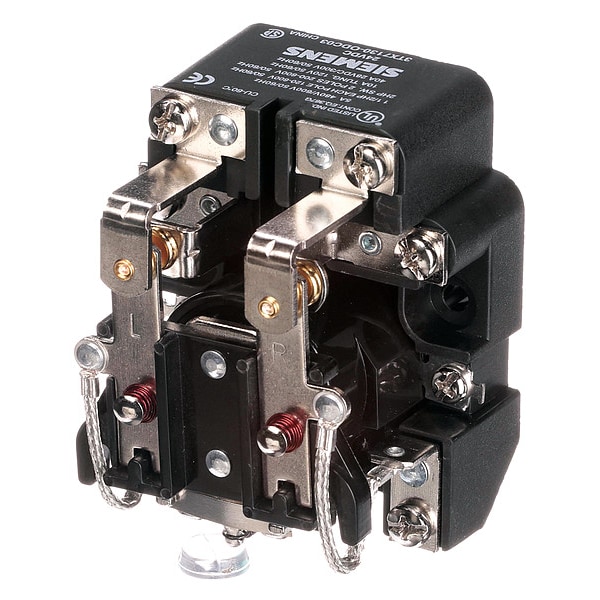

Siemens Open Power Relay, Socket Mounted, DPDT, 24V DC 3TX7130-0DC03 - main

Open Power Relay, Socket Mounted, DPDT, 24V DC

  • Mfr # 3TX7130-0DC03

  • Zoro # G8524346

product price: $80.19
/ea
Free Shipping & Returns

Key Features

Mounting Style
Surface
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (DC)
40 A @ 24V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3TX7130-0DC03
Zoro #
G8524346
UPC #
754554762517
Country of Origin
China

Dimensions

Overall Height - Relay
2.31 in
Overall Depth
2.31 in
Body Depth
3.12 in

Details

Item
Open Power Relay
Mounting Style
Surface
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (DC)
40 A @ 24V
Contact Material
Silver Alloy
Power Consumption - Relay
4.0 W, 10.0 VA
Standards
REACH Art. 33, RoHS Compliant
Features
Heavy Duty Base
Horsepower @ 120V AC
1/3 hp
Weight
11.01 oz
Maximum Switching Voltage
600V AC
Power Consumption
4 W, 10 VA
Electrical Operating Durability
100,000
Input Voltage
24V DC
Dielectric Strength
1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
Motor Rated
Yes
Response Time
30 msec
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
158 Degrees F
Series
3TX71 Series
Mechanical Operating Durability
1,000,000
Status Indicator
No Indicator

Description

Open Power Relay, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (DC) 40 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 3.12 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty Base, Input Voltage 24V DC
