  11. Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 1000V AC

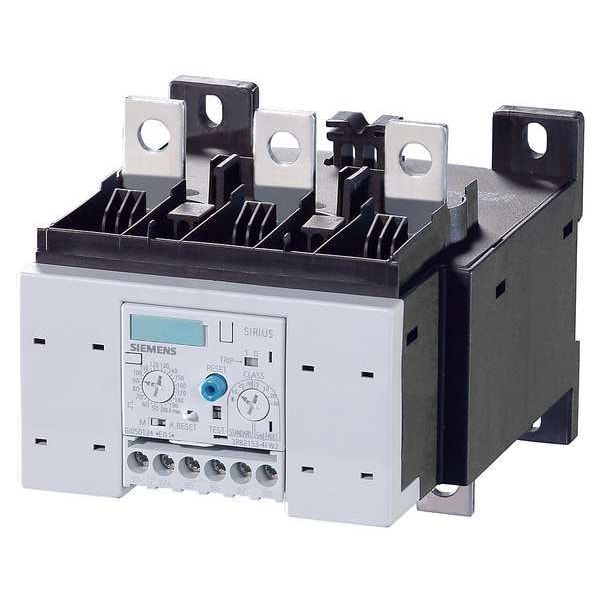

Siemens Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 1000V AC 3RB21534FC2 - main

Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 1000V AC

  • Mfr # 3RB21534FC2

  • Zoro # G4287053

product price: $858.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
50 A
Maximum Overload Relay Current Setting
200 A
Trip Class
5
Frame Size
S6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RB21534FC2
Zoro #
G4287053
UPC #
040892553604
Country of Origin
Germany

Dimensions

Frame Size
S6
Body Height - Relay
4.68 in
Body Depth - Relay
6.1 in
Width
4.72
Depth
6.10
Overall Height - Relay
4.68 in
Height
4.68"
Body Height
5.89 in
Overall Height
6.09 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
50 A
Maximum Overload Relay Current Setting
200 A
Trip Class
5
Overload Protection Type
Electronic
Maximum Voltage Rating
1000V AC
Standards
Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Frame / Series / Class / Code
S6
Sensing Method
Electronic
Features
Earth Fault Detection, Manual and Auto Reset
For Use With
3RT105 Contactors
Separate Mounting
Yes, Additional Items Needed
Use With - Contactors and Starters
Mfr. Series 3RT105 Contactors
Trip Class - Overload
10, 20, 30, 5
Number of Poles
3
Starter Type
IEC
Type of actuation
AC
Greatest value adjustable current range
200 ampere
Lowest value adjustable current range
50 ampere
Release class
adjustable
External reset possible
Yes
Number of auxiliary contacts as changer
0
description of product type
3RB2
Phase
Three
Mounting Style
Direct To Contactor
Minimum Operating Temperature
-13 Degrees F
Compatible with Series
SIRIUS
Terminal Connection Type
Screw Terminals
Reset Type
Auto, Manual
Relay Style
IEC
Maximum Operating Temperature
140 Degrees F
Trip Clss
5E/10E/20E/30E

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 200 A, Minimum Overload Relay Current Setting 50 A, Trip Class 5, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S6, Relay Style IEC
