  11. Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 690V AC

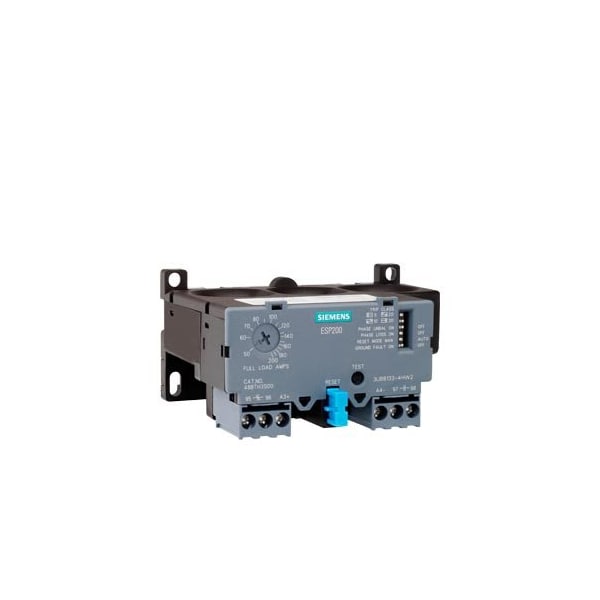

Siemens Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 690V AC 3UB81334HW2 - main

Overload Relay, 1NC/1NO, 50 A Min current, 200 A Max current, 690V AC

  • Mfr # 3UB81334HW2

  • Zoro # G6624895

product price: $394.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
50 A
Maximum Overload Relay Current Setting
200 A
Trip Class
5/10/20/30
Frame Size
B
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3UB81334HW2
Zoro #
G6624895
UPC #
662643854916
Country of Origin
Germany

Dimensions

Frame Size
B
Overall Height - Relay
1.97 in
Body Height - Relay
1.97 in
Width
4.12
Depth
2.31
Height
1.97"
Body Height
1.97 in
Overall Height
1.97 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
50 A
Maximum Overload Relay Current Setting
200 A
Trip Class
5/10/20/30
Overload Protection Type
Electronic
Maximum Voltage Rating
690V AC
Standards
REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006
Number of Poles
3
Frame / Series / Class / Code
Frame B
Sensing Method
Electronic
Use With - Contactors and Starters
Mfr. Class 14 Starters
For Use With
Class 14 Starters
Features
Manual and Auto Reset
Trip Class - Overload
10, 20, 30, 5
Separate Mounting
Yes
Kit Required for Retrofit Mtg.
No
Starter Type
IEC
Reset Type
Auto, Manual
Mounting Style
Direct To Contactor
Relay Style
IEC
Compatible with Series
Class 14 Starters, Class 48 Overload Relays
Phase
Three
Terminal Connection Type
Screw Terminals

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 200 A, Minimum Overload Relay Current Setting 50 A, Trip Class 5/10/20/30, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series Class 14 Starters, Class 48 Overload Relays
