  13. Pilot Light Complete, Incand, 24V, 30mm, GR
Shop All Indicator Lights
Siemens

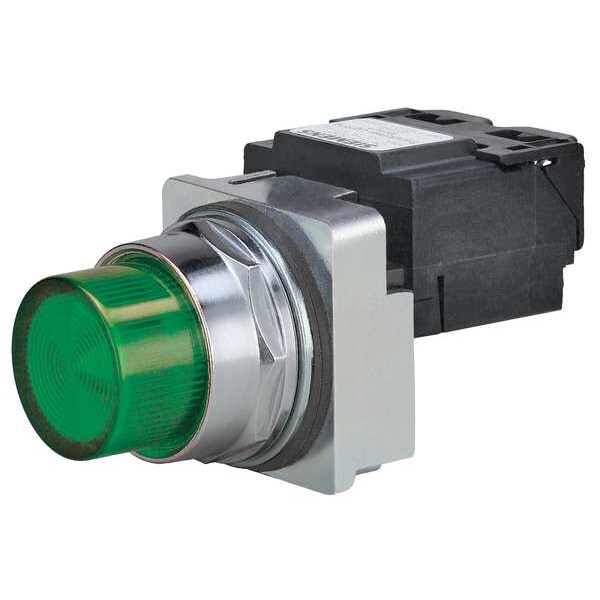

Pilot Light Complete, Incand, 24V, 30mm, GR

product price: $94.15
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Green
  • Lamp Type Incandescent
  • Shape Round
  • Terminal Connection Screw Terminal
See all product information

Product Information

Dimensions

Size 30 mm
Overall Depth 3.49 in
Overall Width 1.7 in
Overall Height 1.7 in
Panel Cutout Diameter 30 mm

Details

Item Pilot Light
Voltage 24V AC/DC
Color Green
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Terminal
Lens Material Plastic
Lens Type Concentric Rings
Lamp Module Type Full Voltage
Basic Material Metal
Includes Lamp Module
Replacement Lamps 2FMP7
Standards CSA, UL Listed
NEMA Rating 1, 12, 13, 3, 3R, 4, 4X
Body Material Metal
IP Rating IP20, IP66
Lamp Voltage 24V AC/DC
Includes Lens Lens Included
Resistance Properties Surge Voltage Resistant, Vibration Resistant
Series Class 52
Lamp Voltage - Maximum 24 V AC/DC
NEMA Enclosure Rating 1, 12, 13, 3, 3R, 4, 4X
Body Finish Chrome Plated
Voltage Rating - Maximum 24 V AC/DC
Lens Color Green
Includes Push-To-Test No Push-To-Test Included
Includes Lamp Module Lamp Module Included
Lamp Color Green

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Terminal, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Concentric Rings, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Metal, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Includes Lamp Module, Standards CSA, UL Listed
