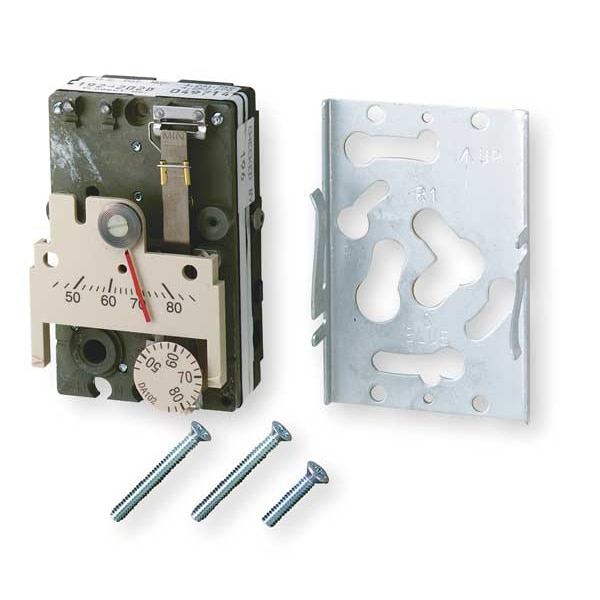

Siemens Pneumatic Thermostat, Single Temperature, Heating and Cooling, 1 Pipe, Vertical, 5/32 in Barb 192-200 - main

Pneumatic Thermostat, Single Temperature, Heating and Cooling, 1 Pipe, Vertical, 5/32 in Barb

  • Mfr # 192-200

  • Zoro # G1878152

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
1 Pipe
Thermostat Application
Heating and Cooling
Temperature Output Settings
Single Temperature
Control Air Pressure
3 to 15 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
192-200
Zoro #
G1878152
UPC #
094705134283
Country of Origin
United States

Dimensions

Height
3 3/8 in
Width
2 1/8 in
Depth
1 5/8 in
Overall Height
3 3/8 in
Overall Width
2 1/8 in
Air Connection Outside Diameter
1/8 in
Overall Depth
1 5/8 in

Details

Item
Pneumatic Thermostat
Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
1 Pipe
Thermostat Application
Heating and Cooling
Temperature Output Settings
Single Temperature
Control Air Pressure
3 to 15 psi
Air Connections
5/32 in Barb
Temp. Control Range
45 Degrees to 85 Degrees F
Includes
Thermostat Chassis and Wall Plate
Element Type
Bi-Metal
Mounting Style
Vertical
Reverse Acting / Direct Acting
Direct Acting
Single Temp. / Dual Temp.
Single Temperature
Heating / Cooling
Heating and Cooling
1 Pipe / 2 Pipe
1 Pipe
Air Consumption
25 scim
Max. Ambient Temp.
140 Degrees F
Max. Air Pressure
30 psi
Throttling Range
3 to 15 psi
Sensor Type
Bi-Metallic Spring
Type
1-Pipe Single Temp.
Application
Heat or Cool
Action Type
Direct Acting
Mounting Direction
Vertical
Manual Indexing Switch
No
Temperature Scale
Fahrenheit
Air Flow Output
Low Volume
Number of Pipes/Air Flow Output
1 Pipe, Low Volume
Thermostat Action
Direct
Control Air Pressure Settings
3 psig (Day)/ 15 psig (Night)
Compatible System Type
Pneumatic Valves and Damper Actuators
Minimum Control Temperature
45 Degrees F
Temperature Settings
Single Temperature
Temperature Control Range
45 Degrees to 85 Degrees F
Minimum Throttling
3 psi
Number of Dials
Single
Maximum Air Pressure
30 psig
Maximum Throttling
15 psi
Number of Pipes
1
Differential Type
Adjustable
Fitting Connection
Barbed 5/32 in
Maximum Control Temperature
85 Degrees F
Mounting Direction/Includes Cover
Vertical, No

Description

Pneumatic Thermostat, Direct Acting, 1 Pipe, Heating and Cooling, Single Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Element Type Bi-Metal, Max. Air Pressure 30 psi, Max. Ambient Temp. 140 Degrees F, Mounting Style Vertical, Height 3 3/8 in, Width 2 1/8 in, Depth 1 5/8 in, Temp. Control Range 45 Degrees to 85 Degrees F, Air Consumption 25 scim, Throttling Range 3 to 15 psi
