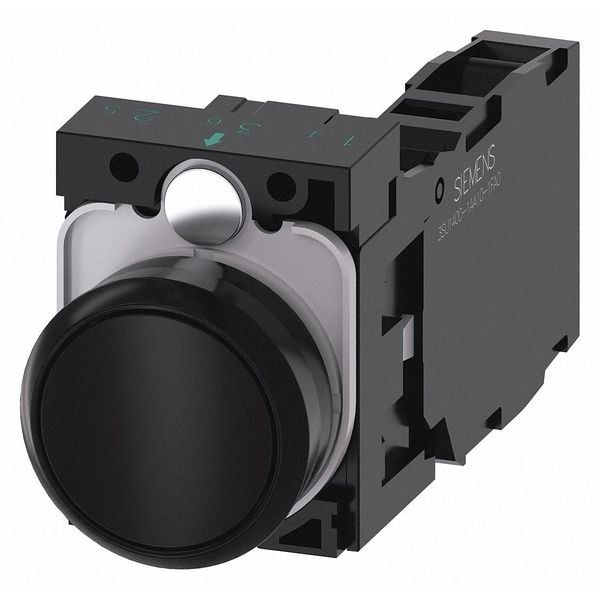

Siemens Push Button, 22mm, Black, Plastic Bezel 3SU1100-0AB10-1FA0 - main

Push Button, 22mm, Black, Plastic Bezel

  • Mfr # 3SU1100-0AB10-1FA0

  • Zoro # G3040517

product price: $50.69
/ea

Key Features

Material
Plastic
Color
Black
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Basic Material
Polyamide
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1100-0AB10-1FA0
Zoro #
G3040517
UPC #
804766335341
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Depth
4 in
Manufacturer Warranty Length
1 yr
Overall Height
1.3 in
Panel Cutout Diameter
22 mm
Overall Width
2 in

Details

Item
Flush Push Button Operator
Material
Plastic
Color
Black
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Basic Material
Polyamide
Contact Form
1NO/1NC
Terminal Connection
Screw
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Action
Momentary
Standards
REACH, WEEE (2012/19/EU)
Type of Operator
Flush Button
Bezel
Plastic
Number of Operators
1
IP Rating
IP66, IP67, IP69, IP69K
Head Material
Plastic
NEMA Contact Rating Designation
A600/R300
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Bezel Material
Plastic
Application
Complete unit
Type
Pushbuttons
Insulation
IP66, IP67, IP69(IP69K)
Contact configuration
36526
Operating Temperature
-25°C to 70°C
Voltage rating
5
Mounting
front plate mounting
Special Features
Yes
Actuator
Button, flat
Operating cycles
10000000
Connection
screw-type terminals
Number of Poles
1
Environmental Conditions
-25
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Mechanical Operating Durability
1.00 x 10^7
DC Contact Rating
1 A @ 600 V
Operator Voltage Rating - Maximum
500 V
Operator Material
Polyamide
Series
3SU
Operator Illumination
Non-Illuminated
Head Color
Black
Push Button Style
Flush
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
AC Contact Rating
10 A @ 600 V
Operating Temperature - Maximum
158 Degrees F

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Black, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
