  15. Push Button, 22mm, Black, Plastic Bezel

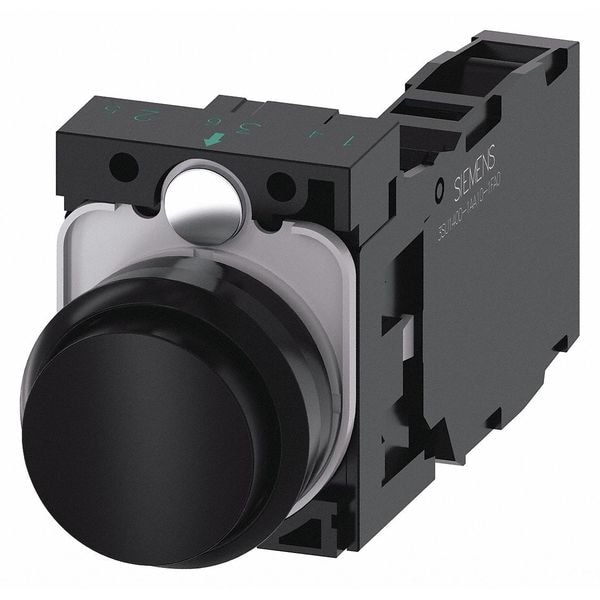

Siemens Push Button, 22mm, Black, Plastic Bezel 3SU1100-0BB10-1FA0 - main

Push Button, 22mm, Black, Plastic Bezel

  • Mfr # 3SU1100-0BB10-1FA0

  • Zoro # G3040867

product price: $24.99
/ea

Key Features

Material
Plastic
Color
Black
Contact Form
1NO/1NC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Basic Material
Polyamide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1100-0BB10-1FA0
Zoro #
G3040867
UPC #
804766358920
Country of Origin
Germany

Dimensions

Size
22 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
1 yr
Overall Width
1.18 in
Overall Depth
3.46 in
Overall Height
1.57 in

Details

Item
Extended Push Button Operator
Material
Plastic
Color
Black
Contact Form
1NO/1NC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Basic Material
Polyamide
Standards
REACH, WEEE (2012/19/EU)
Action
Momentary
Head Material
Plastic
NEMA Contact Rating Designation
A600/R300
Number of Operators
1
Terminal Connection
Screw
IP Rating
IP66, IP67, IP69, IP69K
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Bezel
Plastic
Type of Operator
Extended Button
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Application
Complete unit
Bezel Material
Plastic
Type
Pushbuttons
Operating cycles
10000000
Mounting
front plate mounting
Contact configuration
36526
Operating Temperature
-25°C to 70°C
Special Features
Yes
Number of Poles
1
Actuator
Button, raised
Voltage rating
5
Connection
screw-type terminals
Insulation
IP66, IP67, IP69(IP69K)
Environmental Conditions
-25
Head Color
Black
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
1 A @ 600 V
Operator Material
Polyamide
Operating Temperature - Minimum
-13 Degrees F
Series
3SU
Push Button Style
Extended
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
500 V
Operator Illumination
Non-Illuminated
AC Contact Rating
10 A @ 600 V
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X

Description

Extended Push Button Operator, 22 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Black, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
