Siemens

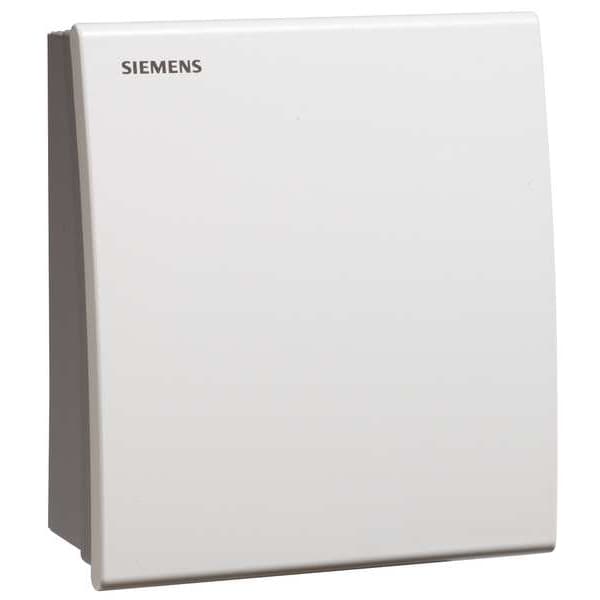

Room Carbon Dioxide Sensor

product price: $310.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Built-In Test Function
  • For Use With 0 - 10Vdc Controller Inputs
  • Sensor Type NDIR CO2 Sensing Module
  • Color White
  • Terminal Designations G,G0,U1
See all product information

Product Information

Dimensions

Depth (In.) 3 3/4 in
Width (In.) 4 1/8 in
Height (In.) 1 7/8 in

Details

Includes Built-In Test Function
For Use With 0 - 10Vdc Controller Inputs
Sensor Type NDIR CO2 Sensing Module
Color White
Terminal Designations G,G0,U1
Operating Temp. Range (F) 23 to 113
Input Voltage 13.5 to 35 Vdc
Item CO2 Room Sensor
Housing Color White
Air Quality Measurement CO2
Housing Material Polyethylene
Minimum Operating Temperature -31 Degrees F
Output 0 to 10V, 0 to 5V, 4 to 20mA
Compatible Building Automation Protocols BACnet IP
Display Type None
CO2 Accuracy +/-50 ppm + 2% of MV
Power Required 24V AC +/-20%
Maximum Operating Temperature 113 Degrees F
Wall Plate Style Flush
For Use With Building Automation Systems Building Automation System Compatible

Description

CO2 Room Sensor, Air Quality Measurement CO2, CO2 Accuracy +/-50 ppm + 2 Percent of MV, Power Required 24V AC +/-20 Percent, Output 0 to 10V, 0 to 5V, 4 to 20mA, Display Type None, Housing Material Polyethylene, Housing Color White, Minimum Operating Temperature -31 Degrees F, Maximum Operating Temperature 113 Degrees F, Compatible Building Automation Protocols BACnet IP, For Use With Building Automation Systems Building Automation System Compatible, Wall Plate Style Flush
